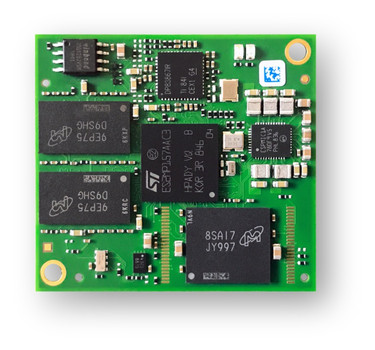

PHYCORE-STM32MP15X
ActiveDas Modul phyCORE-STM32MP1 bietet Secure Boot, Industrielle Kommunikation, eine 3D-Grafikverarbeitungseinheit und ein Cortex-M4 MCU-Subsystem.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power supply | 5 V |
| AC and DC characteristics | |
| Frequency | 2x 650 MHz + 209 MHz |
| Environment and package | |
| Dimensions | 44 mm x 40 mm |
| Temperature range | -40 °C to +85 °C |
| Other | |
| A/D | 2x 16 bit ADC 22 channels, 2x 12 bit DAC |
| Architecture | ARM Cortex-A7 / Cortex-M4 |
| Audio | SAI, up to 3x I²S |
| Bit width | 32 bit |
| Camera | 1x parallel 8-bit - 14-bit |
| CAN | up to 2x CAN FD (including 1x TTCAN) |

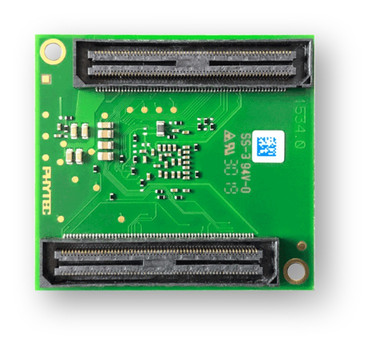

| Connectors | Samtec 0.5 mm pitch (2x 120 pins), optional LGA solder connection |
| DDR3LP RAM | 256 MB - 1 GB |
| Display | MIPI DSI-2 or parallel 18-bit |
| EEPROM | 4 kB - 32 kB |
| eMMC | 4 GB - 128 GB or NAND Flash |
| Ethernet | 10/100/1000 Mbit/s or RGMII |
| Graphics | 3D GPU Vivante - OpenGL ES 2.0 (STM32MP157x only) |
| I²C | up to 6x |
| MMC/SD/SDIO | 3x (1x for eMMC) |
| NAND Flash | up to 1 GB SLC or eMMC |
| Operating system | OpenSTLinux (Yocto based) |
| Processor | STM32MP151A/C, STM32MP153A/C, STM32MP157A/C |
| RTC | STM32MP15x internal and external RTC device |
| Security | AES, 3DES, Ciphers, SHA-1/224/256, MD5, HMAC, TRNG |
| SPI | up to 4x |
| SPI NOR Flash | 4 MB - 16 MB QSPI |
| UART | up to 4x USART, 3x UART |
| USB | 1x Host, 1x OTG 2.0 |
