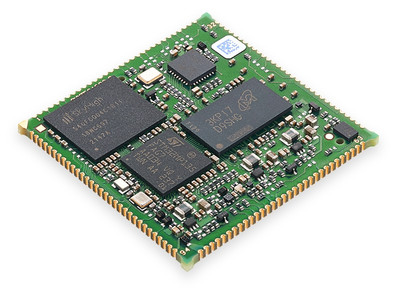

PHYCORE-STM32MP13X
ActiveDas Modul auf Basis des STM32MP13x Prozessors von STMicroelectronics bietet hohe Rechenleistung bei geringem Energieverbrauch.

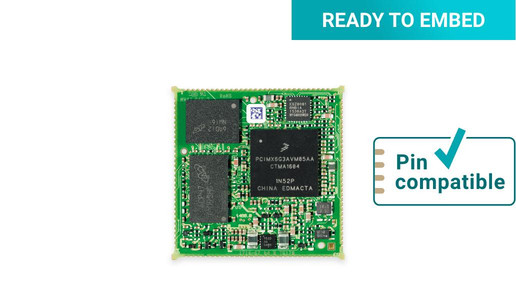

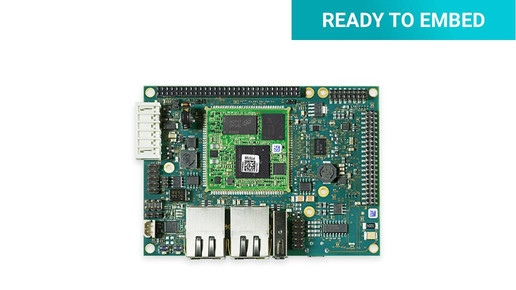

All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption typ. | tbd. |
| AC and DC characteristics | |
| Clock frequency | 650 MHz up to 1 GHz |
| Environment and package | |
| Dimensions | 36 mm x 36 mm x 3 mm |
| Operating temperature | -40 °C to +85 °C |
| Other | |
| A/D | 2x 12-bit, multi channel |
| Audio | 3x I²S/SAI, 1x S/PDIF, DSFDM filter |
| Cache | L1: 64 kB, L2: 128 kB |
| Camera | 1x parallel 8-bit (up to 16-bit) |
| CAN | 1x (up to 2) CAN FD |
| Core | 32-bit Arm® Cortex®-A7 |
| DDR3L | 64 MB up to 1 GB |
| Debugging | JTAG |
| Display | 1x parallel up to 24-bit (Full HD (1920 x 1080)@30 fps) |
| EEPROM | 4 kB up to 32 kB |
| Ethernet | 1x 10/100 Mbit/s (on-board PHY) / 1x GbE (RGMII) |
| Flash | 4 GB up to 256 GB eMMC or 128 MB up to 2 GB NAND Flash |
| Humidity | 95 % rF non condensing |
| HW Crypto Accelerator | AES 128-256, PKA ECC/RSA, DPA, MD5, HASH (SHA-1, SHA-224, ... , SHA-512, SHA-3), HMAC |
| HW Security | Secure boot, TrustZone®, tamper pins, temperature,voltage- and frequency monitoring |
| I²C | 1x (up to 4) |
| Internal RAM | 168 kB SRAM |
| MMC/SD/SDIO | 2x |
| Operating system | STM Mainline LTS Linux with TensorFlow Lite native support |
| PCB connection | 124 plated half-holes (1 mm pitch) + 35 solder pads |
| Processor | STM32MP13x |
| Processor extension | Arm® NEON™ and Arm® TrustZone® |
| PWM | 1x (up to 8) |
| Real-time operating system | freeRTOS |
| SPI | 1x (up to 4) |
| UART | 3x (up to 6) |
| USB | 1x 2.0 OTG, 1x 2.0 host |
| Weight | approx. 6.2 g |
