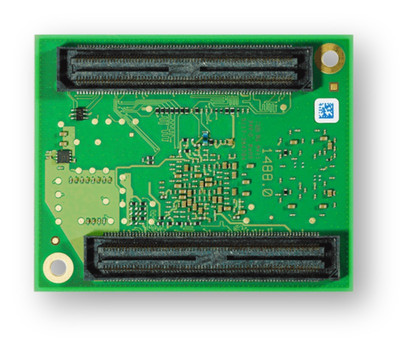

PHYCORE-IMX-8X
ActiveDas phyCORE-i.MX 8X System on Module verbindet hohe Performance mit niedriger Stromaufnahme und einem günstigen Preis-/Leistungs-Verhältnis.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power supply | 3.3 V |
| AC and DC characteristics | |
| Frequency | up to 4x 1.2 GHz + 264 MHz |
| Environment and package | |
| Dimensions | 52 mm x 42 mm |
| Temperature range | -25 °C to +85 °C |
| Other | |
| A/D | 6x |
| Architecture | ARM Cortex-A35 / Cortex-M4F |
| Audio | 1x ESAI |
| Bit width | 64 bit |
| Camera | 1x MIPI CSI, 1x 8-bit/10-bit parallel CSI |
| CAN | 3x CAN-FD |
| Connectors | Samtec 0.5 mm pitch (280 pins) |
| Display | 2x LVDS or 2x MIPI DSI, Parallel |
| DSP | Tensilica HiFi 4 DSP with 666 MHz |
| EEPROM | 4 kB |
| eMMC | 4 GB - 128 GB |
| Ethernet | 2x 10/100/1000 Mbit/s (1x onboard / 1x RGMII) |
| Graphics | 3D GPU (Vivante GC7000 Lite) |
| I²C | up to 10x |
| LPDDR4 RAM | 1 GB - 4 GB |
| MMC/SD/SDIO | 1x (only with eMMC) |
| NAND Flash | 128 MB - 1 GB (NAND or eMMC) |
| Operating system | Linux (Yocto based), QNX (by BitCtrl) |
| PCle | 1x PCIe 3.0 |
| Processor | i.MX 8DualX / i.MX 8DualXPlus / i.MX 8QuadXPlus |
| PWM | 4x |
| RTC | Low power, high precision external RTC |
| Security | SE050 NXP Security Chip, AES, 3DES, RSA, ECC Ciphers, SHA1/256, TRNG |
| SPI NOR Flash | 64 MB - 256 MB (Octal SPI/Dual SPI Flash) |
| SPI/SSP | 1x Octal SPI or 2x Quad SPI + 3x SPI |
| UART | 2x |
| USB | 1x USB 3.0 OTG, 1x USB 2.0 OTG |
| Video | H.265 dec 4k, H264 enc/dec 1080p |
