PHYTEC AmericaGermany

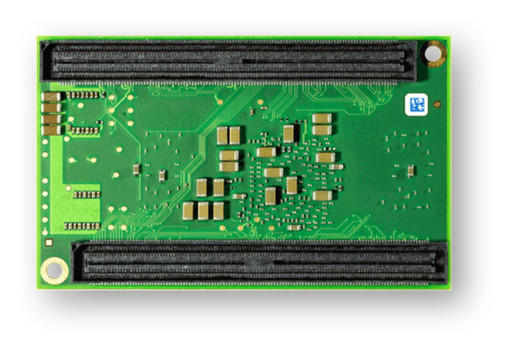

PHYCORE-IMX-8
ActiveBis zu acht Rechenkerne und umfassende Schnittstellen machen das phyCORE-i.MX 8 Modul fit für höchste Ansprüche im Bereich Grafik, Imaging und Security.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power supply | 3.3 V |
| AC and DC characteristics | |
| Frequency | 1.104 GHz (A53), 1.3 GHz (A72), 264 MHz (M4F) |
| Environment and package | |
| Dimensions | 73 mm x 45 mm |
| Temperature range | -40°C to +85°C |
| Other | |
| A/D | 8x |
| Audio | 2x ESAI, up to 4x SAI |
| Bit width | 64-bit |
| Camera | 2x MIPI CSI |
| CAN | 3x FlexCAN |
| Connectors | Samtec 0.5 mm pitch (480 pins) |
| Cores | 4x ARM Cortex-A53, up to 2x Arm Cortex-A72, 2x Arm Cortex-M4F |
| Display | 2x LVDS, 2x MIPI DSI, 1x HDMI |
| DSP | Tensilica HiFi 4 DSP |
| EEPROM | 4 kB |
| eMMC | 4 GB - 128 GB |
| Ethernet | 2x 10/100/1000 Mbit/s (1x onboard / 1x RGMII) |
| Graphics | 2x 3D GPU (Vivante GC7000XS/VX) |
| I²C | up to 19x |
| Keypad | 1x |
| LPDDR4 RAM | 1 GB - 8 GB |
| MMC/SD/SDIO | 2x |
| Operating system | Linux (Yocto based) |
| PCle | 2x PCIe 3.0 |
| Processor | i.MX 8QuadPlus, i.MX 8QuadMax |
| PWM | yes |
| RTC | Low power, high precision external RTC |
| SATA | 1x |
| Security | AES, 3DES, RSA, ECC Ciphers, SHA1/256, TRNG |
| SPI | up to 4x + 1x QSPI |
| SPI NOR Flash | 64 MB - 256 MB Octal SPI/DualSPI Flash |
| UART | 8x |
| USB | 1x USB 3.0, 1x OTG |
| Video | 4K H.265/H.264 Decode, 1080p60 H.264 Encode |
