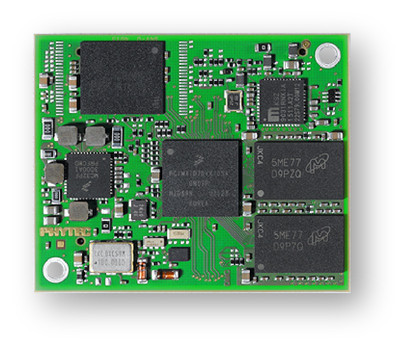

PHYCORE-IMX-7
ActiveDas phyCORE-i.MX 7 Embedded Modul bietet 2x Gigabit Ethernet und ist ideal geeignet für Applikationen mit kritischen Stromverbrauchsanforderungen.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power supply | 3.3 V |
| AC and DC characteristics | |
| Frequency | up to 2x 1 GHz + 200 MHz |
| Environment and package | |
| Dimensions | 50 mm x 41 mm |
| Temperature range | -40 °C to +85 °C |
| Other | |
| A/D | 4x |
| Architecture | ARM Cortex-A7 / Cortex-M4 |
| Audio | I²S |
| Bit width | 32 bit |
| Camera | MIPI CSI |
| CAN | 2x |

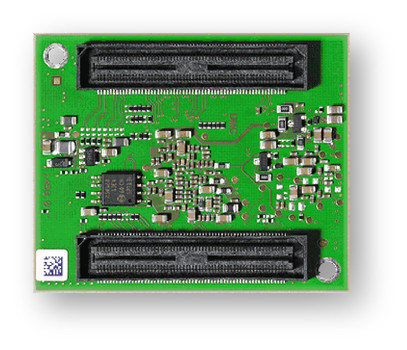

| Connectors | Samtec 0.5 mm pitch (240 pins) |
| DDR3 RAM | up to 2 GB |
| Display | TTL 24-bit, MIPI DSI |
| EEPROM | 4 kB |
| eMMC | up to 128 GB |
| Ethernet | 2x 10/100/1000 Mbit/s |
| I²C | 4x |
| MMC/SD/SDIO | 3x |
| NAND Flash | up to 8 GB |
| Operating system | Linux (Yocto based) |
| PCle | 1x |
| Processor | i.MX 7 Single Core / i.MX 7 Dual Core |
| PWM | 4x |
| RTC | yes |
| Security | RSA, Ciphers, DPA, RNG, Tamper |
| SPI | 4x |
| SPI NOR Flash | up to 16 MB |
| UART | 7x |
| USB | 2x OTG, 1x Host |
