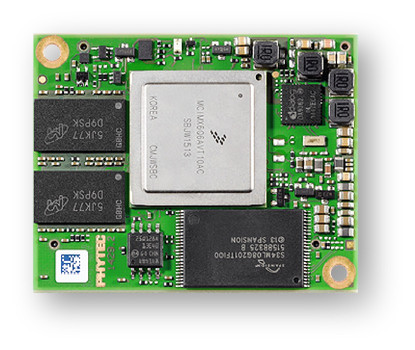

PHYCORE-IMX-6
ActiveDas phyCORE-i.MX 6 mit Quadcore Rechenleistung auf 40 x 50 mm eignet sich für zahlreiche industrielle Anwendungen. Langzeitverfügbar und vielfach bewährt.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power supply | 3.3 V |
| AC and DC characteristics | |
| Frequency | up to 1.2 GHz |
| Environment and package | |
| Dimensions | 50 mm x 40 mm |
| Temperature range | -40 °C to +85 °C |
| Other | |
| Architecture | ARM Cortex-A9 |
| Audio | I²S |
| Bit width | 32 bit |
| Camera | 2x parallel (CSI), 1x MIPI CSI2 |
| CAN | up to 2x |
| Connectors | Samtec 0.5 mm pitch (280 pins) |
| DDR3 RAM | up to 2 GB |
| Display | 2x LVDS, up to 1x 24 bit parallel, 1x HDMI |
| EEPROM | 4 kB, 32 kB |
| eMMC | 2 GB - 64 GB |
| Ethernet | 1x 10/100/1000 Mbit/s |
| Graphics | 3D GPU Vivante GC2000, 2D GPU Vivante GC355 (i.MX 6DualPlus - i.MX 6QuadPlus) |
| I²C | up to 3x |
| Keypad | up to 1x |
| MMC/SD/SDIO | up to 2x |
| NAND Flash | 256 MB - 8 GB |
| Operating system | Linux (Yocto based), QNX (by BitCtrl) |
| PCle | 1x |
| Processor | i.MX 6Solo / i.MX 6DualLite / i.MX 6Dual / i.MX 6DualPlus / i.MX 6Quad / i.MX 6QuadPlus |
| PWM | up to 4x |
| RTC | i.MX 6 or PMIC internal |
| SATA | 1x |
| Security | RNG, Ciphers, Security Control |
| SPI | up to 5x |
| SPI NOR Flash | 4 MB - 16 MB |
| UART | up to 5x |
| USB | 1x Host, 1x OTG |
| Video | 1080p decode and encode (i.MX 6DualPlus - i.MX 6QuadPlus) |
