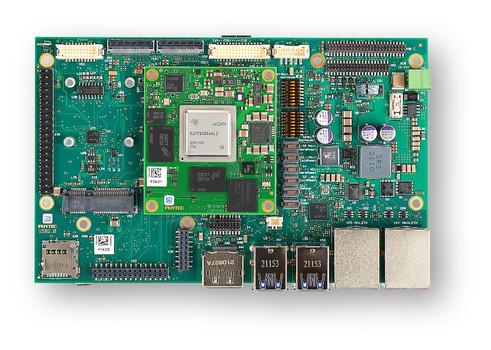

PHYCORE-AM68X-TDA4X
ActiveDer AM68x, bzw. TDA4VE/AL/VL Prozessor zeichnet sich durch Systemintegration, Skalierbarkeit und Kostenersparnis aus.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption typ | tbd. |
| AC and DC characteristics | |
| Clock frequency | 2 GHz (Cortex-A72), 1 GHz (Cortex-R5F) |
| Environment and package | |
| Dimensions | 59 mm x 53 mm x 8.3 mm |
| Operating temperature | -40 °C to +85 °C |
| Other | |
| A/D | up to 16x 12-bit |
| Additional core(s) | up to 6x Arm® Cortex®-R5F |
| Audio | up to 2x McASP |
| CAN | up to 11x CAN FD |
| Connector | Samtec (2x 120 Pins, 1x 100 Pins), 0.5 mm pitch |
| Core(s) | 2x Arm® Cortex®-A72 |
| Debugging | JTAG, UART |
| Display | 1x DSI, 1x LVDS, bis zu 1x DP |
| DSP | 2x C7x 1 GHz |
| EEPROM | 4 KB |
| eMMC | up to 256 GB TLC eMMC |
| Ethernet | 2x GbE (1x on-board PHY / 1x RGMII) |
| GPMC | 1 |
| Humidity | 95 % rF non condensing |
| HW Security | 3DES, DES, AES, RNG, MD5, PKA, SHA, RSA-4k |
| I²C | up to 9 |
| Internal RAM | 4 MB SRAM with ECC |
| Kamera | 2x MIPI CSI-2 v1.3 (partly v2.0) |
| L1 Cache | 32 KB data, 48 KB code with ECC |
| L2 Cache | 1 MB with ECC |
| LPDDR4 | up to 2 x 8 GB |
| MMC/SD/SDIO | 1 |
| NOR Flash | 64 MB (Octal SPI/Quad SPI Flash) |
| Operating system | Linux |
| PCI / PCIe | 1x PCIe 3.0 (4 lanes) |
| Processor | TI AM68x or TDA4VE/AL/VL |
| PWM | up to 11 |
| Real-time operating system | freeRTOS |
| RTC | on-board |
| SPI | up to 9, 1x QSPI |
| UART | up to 13 |
| USB | 1x USB 2.0, 1x USB 3.1 (DRD) |
| Weight | 30 g |
