Mini-CircuitsUnited States

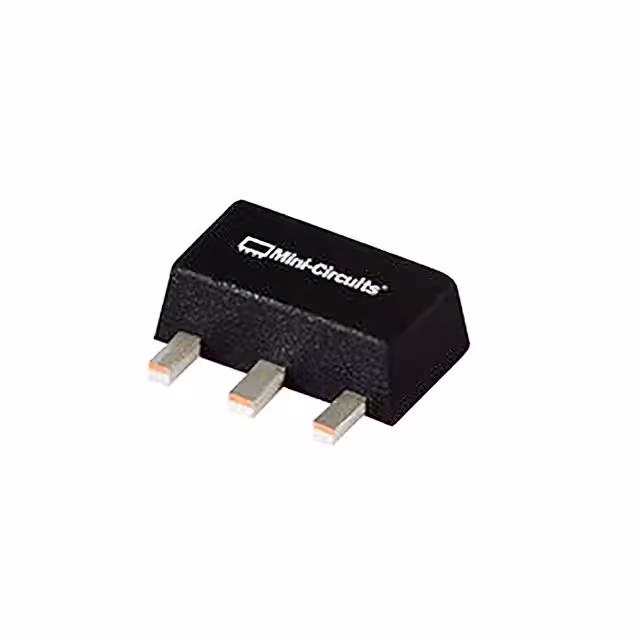

IC RF AMP CATV 50MHZ-6GHZ SOT89
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 146mA |
| Voltage - Supply | 4.8V ~ 5.2V |
| AC and DC characteristics | |
| Frequency | 50MHz ~ 6GHz |
| Gain | 9.7dB |
| Noise Figure | 3.5dB |
| Test Frequency | 3GHz ~ 4GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
| Other | |
| Mfr | Mini-Circuits |
| P1dB | 22.7dBm |
| Product Status | Active |
| RF Type | CATV, DBS, LTE, MMDS, Wireless LAN |
| Series | - |
