NXP SemiconductorsNetherlands
TVS DIODE 3.3VWM 20VCL 330W SOD523
Unidirectional TVS diode in SOD523 package, max peak pulse power 330W, clamping voltage 20V, for single-line ESD protection.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage3.3 V
Breakdown voltage3.3 V
Peak pulse power330 W
PolarityUnidirectional
Datasheet-verified parameters
14 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Reverse working voltage | 3.3 V | |
| Breakdown voltage | 3.3 V | |
| Clamping voltage | 20 V at IPP = 18 A | |
| Peak pulse power | 330 W (8/20 µs) | |
| Polarity | Unidirectional | |
| Package | SOD523 (SC-79) |
All parameters (7)
| Power | |
|---|---|
| clamping voltage | 20 V |
| peak pulse current | 18 A (Max) |
| peak pulse power | 330 W (Max) |
| reverse standoff voltage | 3.3 V |
| Environment and package | |
| operating ambient temperature | -65 to +150 °C |
| Package | SOD523 |
| Other | |
| diode capacitance | 207 pF |
Pinout and package

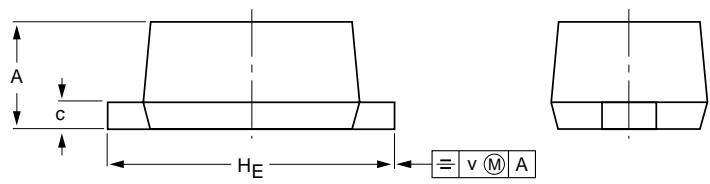

PackageSOD523 (SC-79)
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | Cathode | ||
| 2 | Anode |
