Nexperia USA Inc.Netherlands
TRANS PREBIAS NPN 50V TO236AB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1µA |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 250 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1mA, 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |

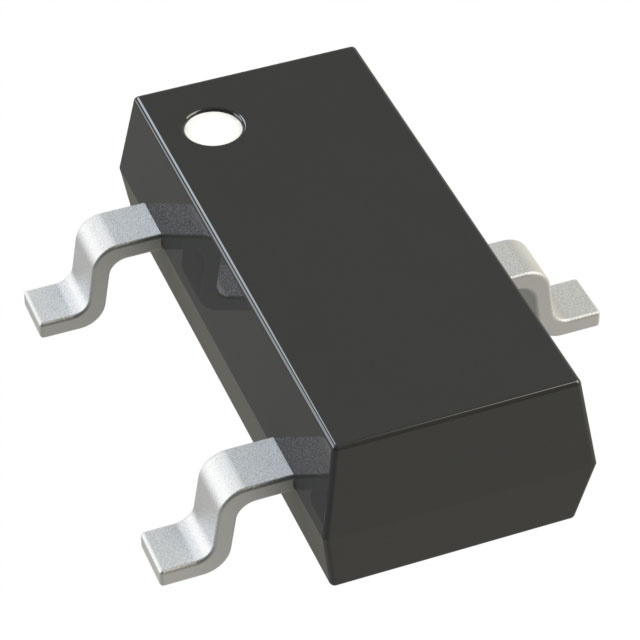

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB |
| Other | |
| Base Product Number | PDTC114 |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Resistor - Base (R1) | 10 kOhms |
| Series | - |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
