Nexperia USA Inc.Netherlands

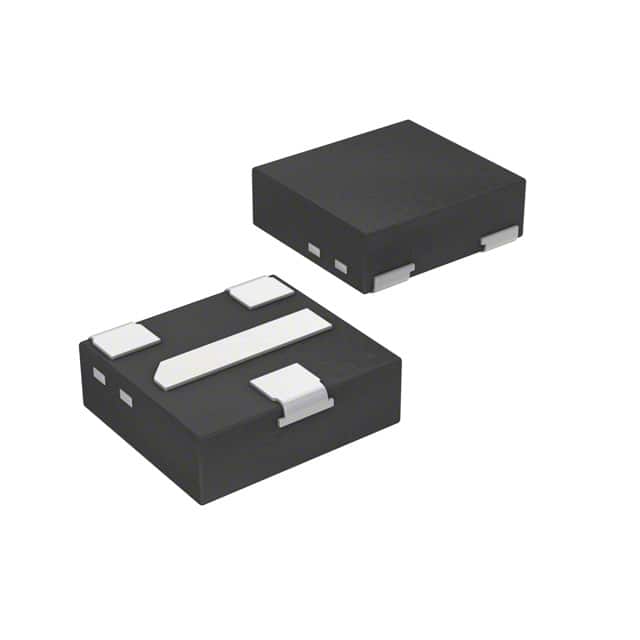

PDTA114YQC/SOT8009/DFN1412D-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 360 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 5mA, 5V |
| Frequency - Transition | 180 MHz |
| Environment and package | |
| Mounting Type | Surface Mount, Wettable Flank |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1412D-3 |
| Other | |
| Mfr | Nexperia USA Inc. |
| Product Status | Obsolete |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Series | - |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA |
