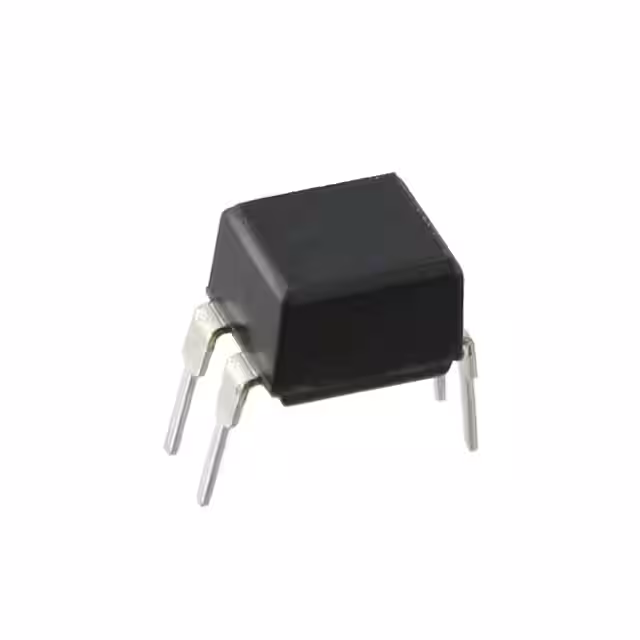

OPTOISOLATOR 5KV DARL 4DIP
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5 kV
Output typeDarlington
Current transfer ratio600 %500μA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 10 mA |
| Current - Output / Channel | 80mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 600% @ 500µA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 35V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 60µs, 53µs |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C~100°C |
| Package | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Other | |
| Input Type | DC |
| Mfr | Sharp Microelectronics |
| Output Type | Darlington |
| Product Status | Obsolete |
| Series | - |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 1V |
