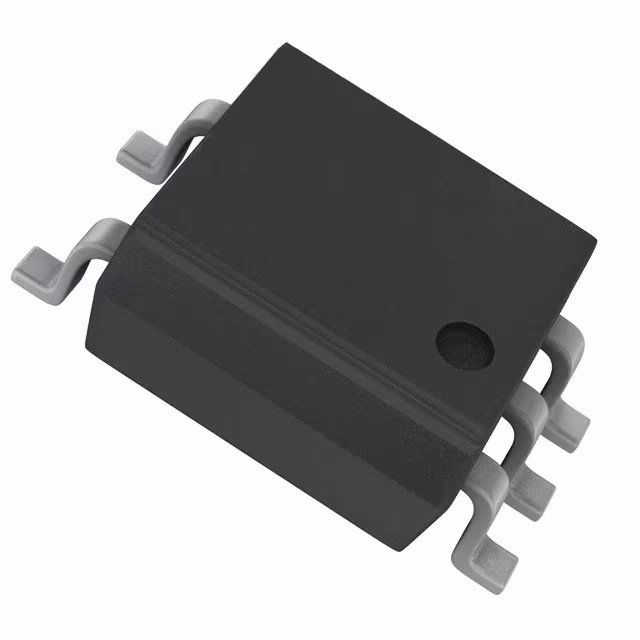

OPTOISO 3.75KV OPEN COLL 5SOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 20mA |
| Current - Output / Channel | 50 mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Voltage - Isolation | 3750Vrms |
| Voltage - Supply | 4.5V ~ 5.5V |
| AC and DC characteristics | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SOP |
| Other | |
| Base Product Number | PC410 |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Data Rate | 10Mbps |
| Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC |
| Mfr | Sharp Microelectronics |
| Output Type | Open Collector |
| Product Status | Obsolete |
| Series | OPIC™ |
