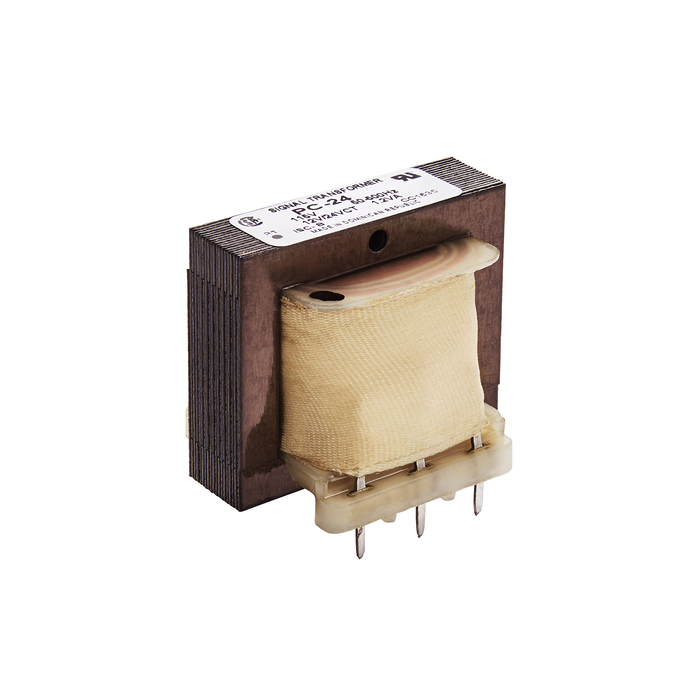

Bel Fuse Inc.United States
Single Phase Transformers
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (VA) | 1.2 |
| Voltage - Primary (V) | 115 |
| Voltage - Secondary Parallel | 20V |
| Voltage - Secondary Series | 40VCT |
| AC and DC characteristics | |
| Frequency (Hz) | 50 ~ 500 |
| Environment and package | |
| Dimensions L x W x H (in) | 1.37 x 1.12 x 1.18 |
| Dimensions L x W x H (mm) | 34.8 x 28.4 x 30 |
| Mounting Type | Through Hole Mount |
| RoHS Compliant | Yes |
| Other | |
| Brand | Signal Transformer |
| Dielectric Strength (Vrms) | 1500 |
| Insulation Class | Class B, 130ºC |
| Safety Approvals | CSA, UL |
| Safety Standards | UL 5085 |
| Weight lbs (kg) | 0.19 (0.09) |
