Signal TransformerUnited States

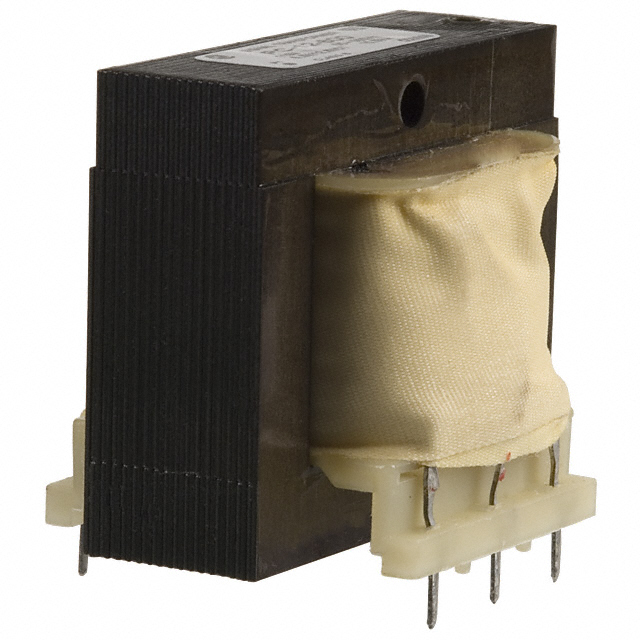

PWR XFMR LAMINATED 10VA TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | Parallel 500mA, Series 250mA |
| Power - Max | 10VA |
| Voltage - Isolation | 1500Vrms |
| Voltage - Primary | 115V |
| Voltage - Secondary (Full Load) | Parallel 20V, Series 40V |
| Environment and package | |
| Height - Seated (Max) | 41.27mm |
| Mounting Type | Through Hole |
| Package | Box |
| Size / Dimension | 47.60mm L x 36.50mm W |
| Other | |
| Center Tap | No |
| Mfr | Signal Transformer |
| Primary Winding(s) | Single |
| Product Status | Active |
| Secondary Winding(s) | Dual |
| Series | PC |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Weight | 0.563 lb (255.37 g) |
