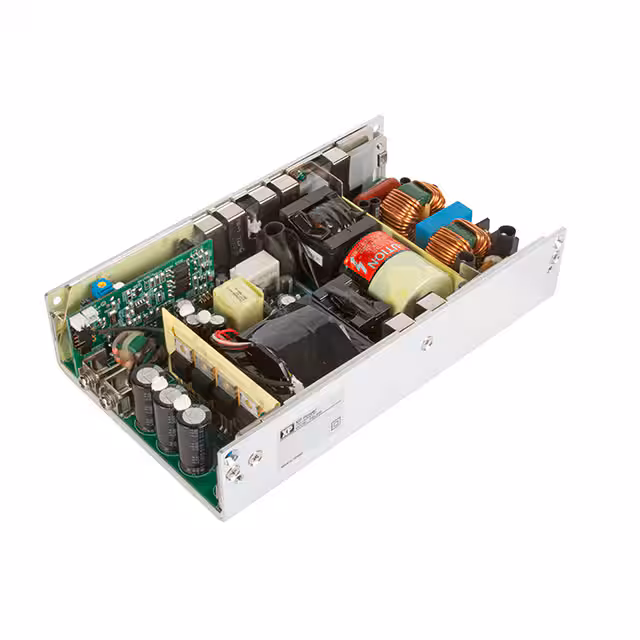

AC/DC CONVERTER 12V 250W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage80 ~ 264 V
Output voltage12 V
Output current20.83 AMax
Power250 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 20.83 A |
| Power (Watts) | 250W (450W Forced Air) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 7.10" L x 4.00" W x 1.56" H (180.3mm x 101.6mm x 39.6mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CB, TUV, UL |
| Base Product Number | PBL500 |
| Efficiency | 90% |
| Features | PFC, Remote On/Off, Remote Sense, Standby Output |
| Mfr | XP Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | PBL500 (500W) |
| Standard Number | 60601-1 |
| Type | Open Frame |
