MEAN WELL USA Inc.Taiwan, China

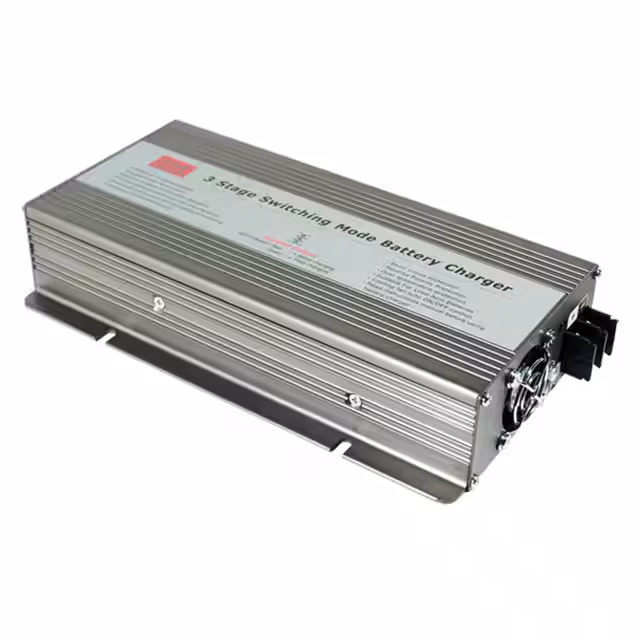

BATT CHRGR ENCLOSED 14.4V 24.3A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Charge Current - Max | 24.3A |
| Power - Max | 360W |
| Voltage - Input | 90 ~ 132VAC, 180 ~ 264VAC |
| Voltage - Nominal | 14.4V |
| Environment and package | |
| Battery Cell Size | 12V |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~60°C |
| Package | Box |
| Size / Dimension | 9.96" L x 5.31" W x 1.91" H (253.0mm x 135.0mm x 48.5mm) |
| Other | |
| Approval Agency | CB, cURus |
| Base Product Number | PB-360 |
| Battery Chemistry | Lead Acid, Lithium-Ion |
| Charge Time | - |
| Features | LED Indicator |
| Mfr | MEAN WELL USA Inc. |
| Number of Cells | 1 |
| Product Status | Obsolete |
| Series | PB-360 |
| Termination Style | Screw Terminal |
| Type | Enclosed |
| Weight | 1500 g |
