Mallory Sonalert Products Inc.United States

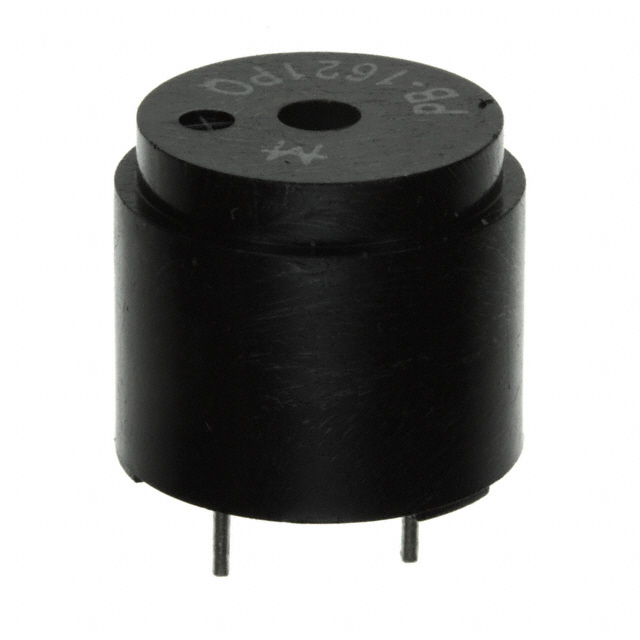

BUZZER MAGNETIC 5V 16MM TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 60mA |
| Voltage Range | 4 ~ 7V |
| Voltage - Rated | 5 V |
| AC and DC characteristics | |
| Frequency | 2.048kHz |
| Environment and package | |
| Height - Seated (Max) | 0.559" (14.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 70°C |
| Package | Bulk |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Other | |
| Approval Agency | - |
| Driver Circuitry | Transducer, Externally Driven |
| Duration | - |
| Input Type | Peak-Peak Signal |
| Mfr | Mallory Sonalert Products Inc. |
| Operating Mode | Single Tone |
| Port Location | Top |
| Product Status | Active |
| Ratings | Washable |
| Series | PB |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Technology | Magnetic |
| Termination | PC Pins |
