AmethermUnited States

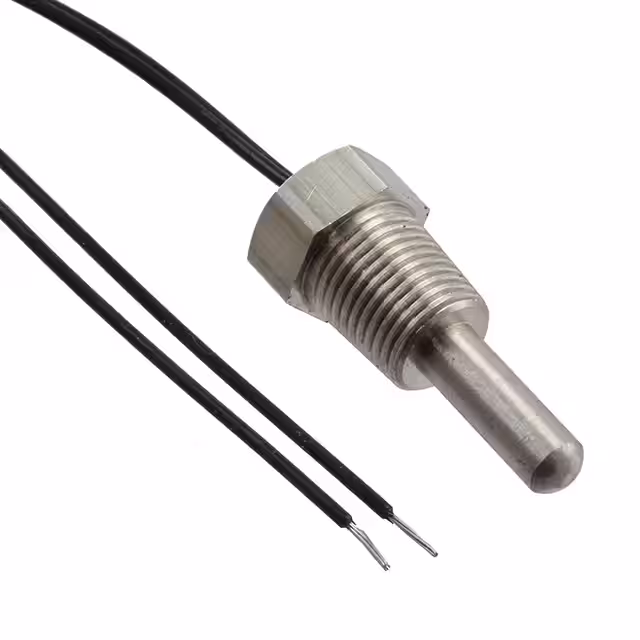

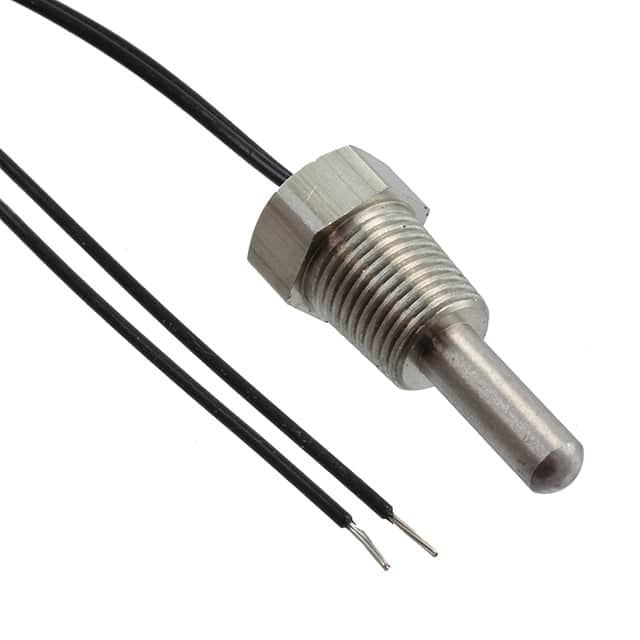

THERMISTOR NTC 10KOHM 3950K STUD
All alternatives
View full reportTechnical parameters
Key specs
Tolerance3 %
B value3.95 kK
| Environment and package | |
|---|---|
| Mounting Type | Chassis Mount |
| Operating Temperature | -50°C~150°C |
| Package | Bulk |
| Package / Case | Nonstandard, Threaded Stud |
| Other | |
| B0/50 | - |
| B25/100 | - |
| B25/50 | 3950K |
| B25/75 | - |
| B25/85 | - |
| B Value Tolerance | ±2% |
| Length - Lead Wire | 19.69" (500.00mm) |
| Mfr | Ametherm |
| Product Status | Active |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±3% |
| Series | PANW |
