ZF ElectronicsGermany

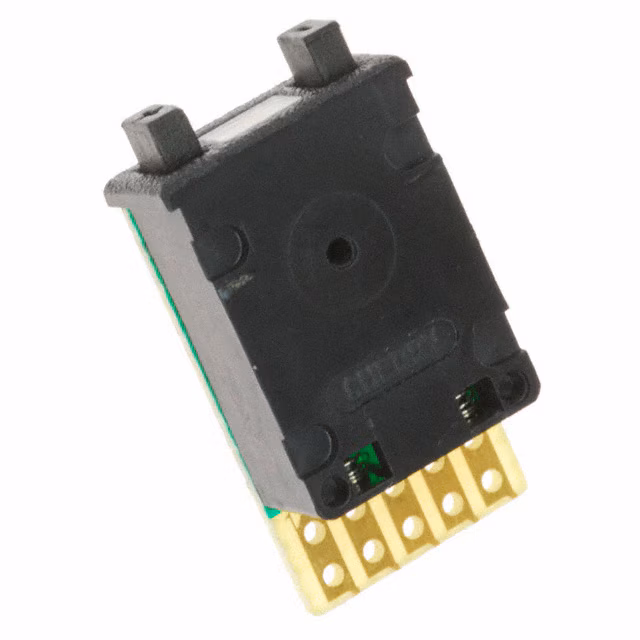

SWITCH THUMB BCD 0.1A 50V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.1A @ 50VAC/DC |
| Environment and package | |
| Display Characters - Height | 0.120" (3.00mm) |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature | -20°C~80°C |
| Package | Bulk |
| Panel Cutout Dimensions | - |
| Other | |
| Actuator Type | Pushwheel |
| Color | Black |
| Contact Finish | Gold Alloy |
| Contact Material | - |
| Depth Behind Flange | 24.00mm |
| Electrical Life | - |
| End Caps | Sold Separately |
| Features | - |
| Housing Material | Polyphenylene Oxide (PPO) |
| Mfr | ZF Electronics |
| Number of Sections | 1 |
| Output Code | BCD |
| Product Status | Obsolete |
| Read Out | 0 ~ 9 |
| Section Width | 0.300" (7.62mm) |
| Series | PA |
| Termination Style | Card Edge/Solder Pad |
