Pulse ElectronicsUnited States

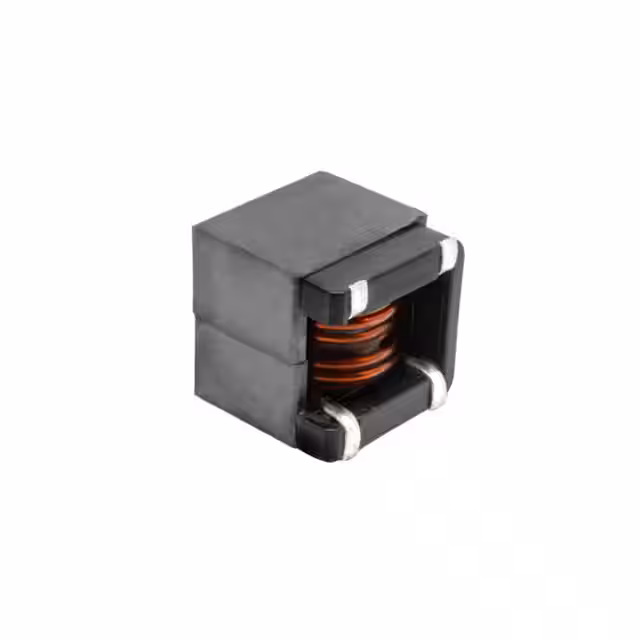

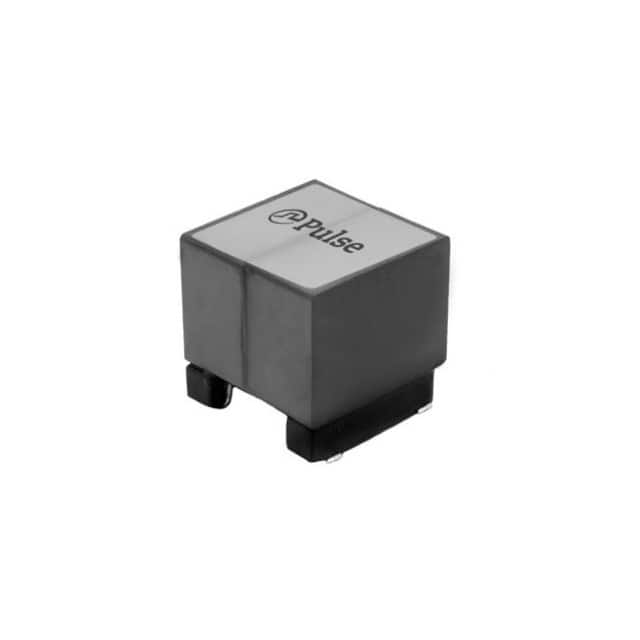

COMMON MODE CHOKE 260UH 26A
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating26 AMax
DC resistance2.1 mΩMax
Impedance1.05 kΩ2.82 MHz
| Power | |
|---|---|
| Current Rating (Max) | 26A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Impedance @ Frequency | 1.05 kOhms @ 2.82 MHz |
| Environment and package | |
| Height (Max) | 0.894" (22.70mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Horizontal, 4 PC Pad |
| Size / Dimension | 0.957" L x 0.925" W (24.30mm x 23.50mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 2.1mOhm |
| Features | - |
| Filter Type | Signal Line |
| Mfr | Pulse Electronics |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | PA5141.XXXNL |
