Vishay General Semiconductor - Diodes DivisionUnited States

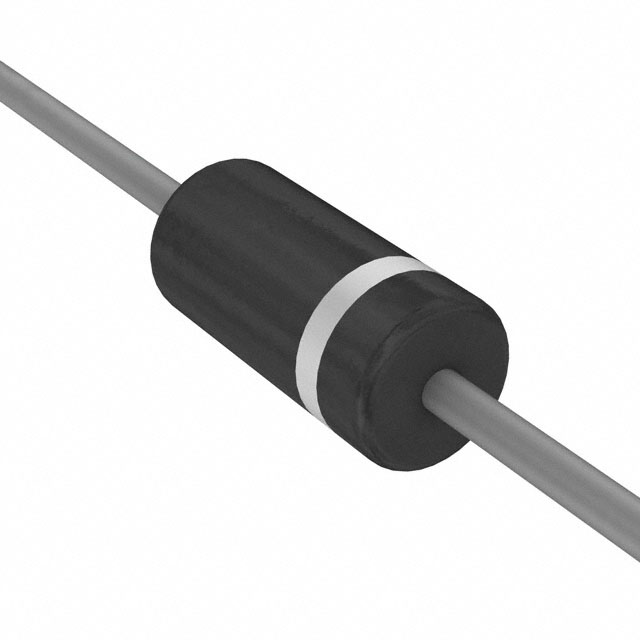

P6KE36AHE3/54
TVS DiodesTVS DIODE 30.8VWM 49.9VC DO204AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage30.8 V
Breakdown voltage34.2 V
Clamping voltage49.9 VMax
Peak pulse power600 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 12A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V |
| Voltage - Reverse Standoff (Typ) | 30.8V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package / Case | DO-204AC, DO-15, Axial |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-204AC (DO-15) |
| Other | |
| Applications | - |
| Base Product Number | P6KE36 |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Series | TransZorb® |
| Type | Zener |
