Ethertronics/AVXUnited States

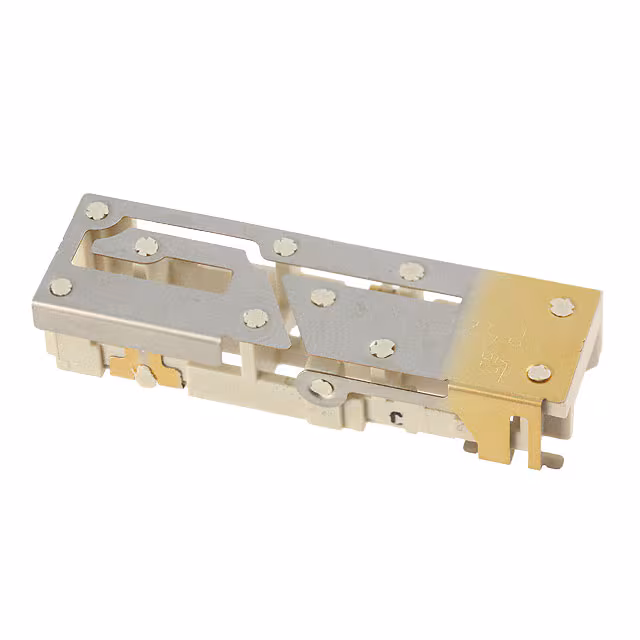

RF ANT 850MHZ/900MHZ STAMPED MET
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 2 W |
| AC and DC characteristics | |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Frequency Group | Wide Band |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Gain | 1.4dBi, 1.2dBi, 2.7dBi, 2.6dBi, 2.8dBi |
| Environment and package | |
| Height (Max) | 0.319" (8.10mm) |
| Mounting Type | Surface Mount |
| Package | Tray |
| Other | |
| Antenna Type | Stamped Metal |
| Applications | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
| Features | - |
| Ingress Protection | - |
| Mfr | Ethertronics/AVX |
| Number of Bands | 5 |
| Product Status | Active |
| Return Loss | - |
| RF Family/Standard | Cellular |
| Series | Prestta™ |
| Termination | Solder |
| VSWR | 2.5 |
