Littelfuse Inc.United States

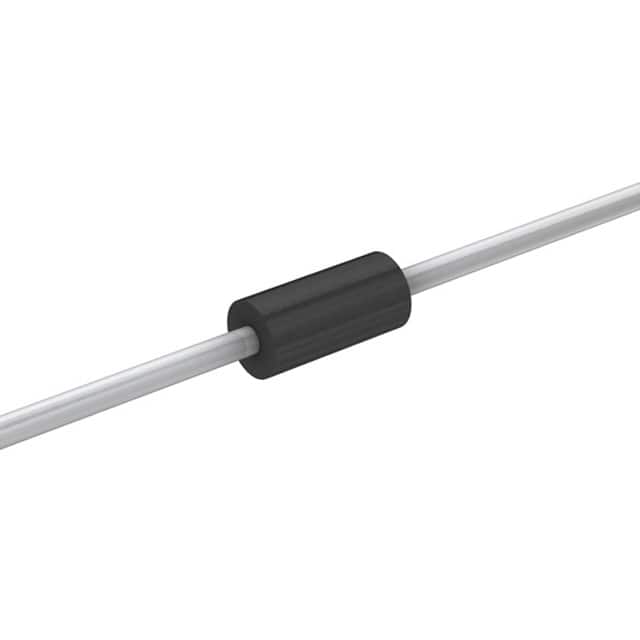

TVS DIODE 15.3VWM 26.78V DO204AL
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage15.3 V
Breakdown voltage16.2 V
Clamping voltage26.78 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 16.1A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16.2V |
| Voltage - Clamping (Max) @ Ipp | 26.78V |
| Voltage - Reverse Standoff (Typ) | 15.3V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | P4KE |
| Type | Zener |
