SMC Diode SolutionsUnited States

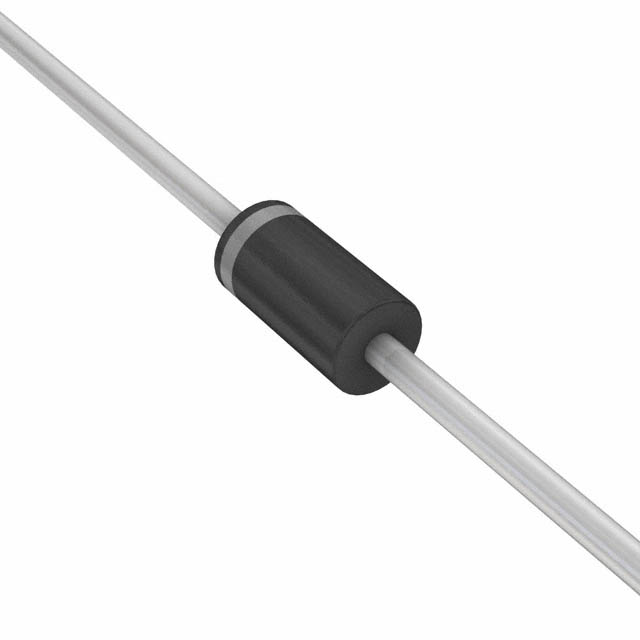

TVS DIODE 12.1VWM 21.2VC DO41
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage12.1 V
Breakdown voltage14.3 V
Clamping voltage21.2 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 20A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 21.2V |
| Voltage - Reverse Standoff (Typ) | 12.1V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Other | |
| Applications | General Purpose |
| Base Product Number | P4KE15 |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Type | Zener |
