Littelfuse Inc.United States

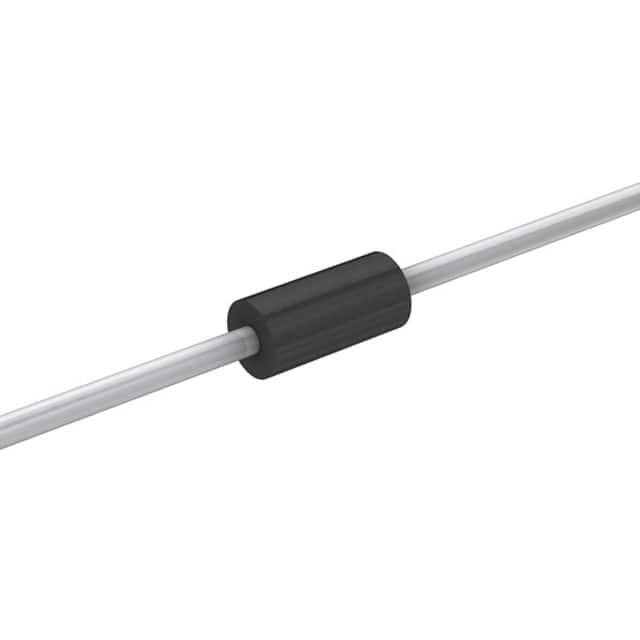

TVS DIODE 9.4VWM 16.38VC DO204AL
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage9.4 V
Breakdown voltage9.95 V
Clamping voltage16.38 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 26.3A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 9.95V |
| Voltage - Clamping (Max) @ Ipp | 16.38V |
| Voltage - Reverse Standoff (Typ) | 9.4V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | P4KE |
| Type | Zener |
