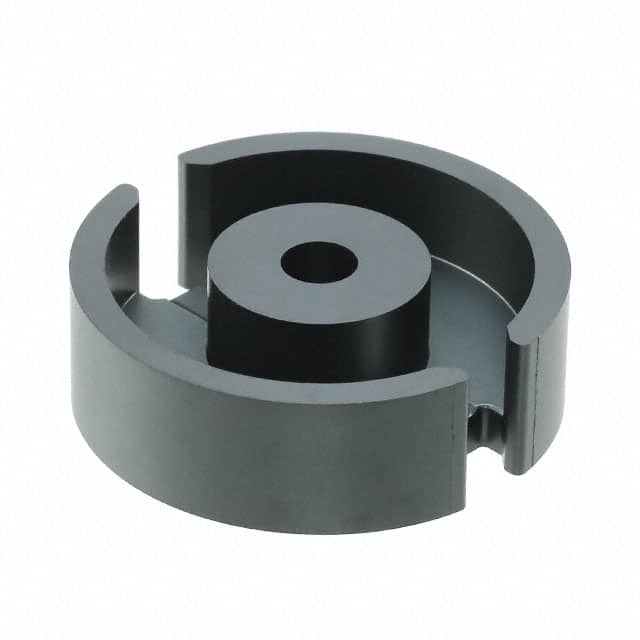

P42/29-3C81

CORES 2PC SET

All alternatives

Environment and package
Height	1.157" (29.40mm)
Package	Bulk
Supplier Device Package	P 42 x 29
Other
Core Factor (ΣI/A) mm<sup>-1</sup>	0.259
Core Type	P (Pot Core)
Diameter	1.669" (42.40mm)
Effective Area (Ae) mm²	265
Effective Length (le) mm	68.6
Effective Magnetic Volume (Ve) mm³	18200
Effective Permeability (µe)	2370
Finish	Uncoated
Gap	Ungapped
Inductance Factor (Al)	11.5 µH
Length	-
Mfr	Ferroxcube
Minimum Core Cross Section (Amin) mm²	214
Product Status	Obsolete
Series	-
Tolerance	±25%
Width	-
