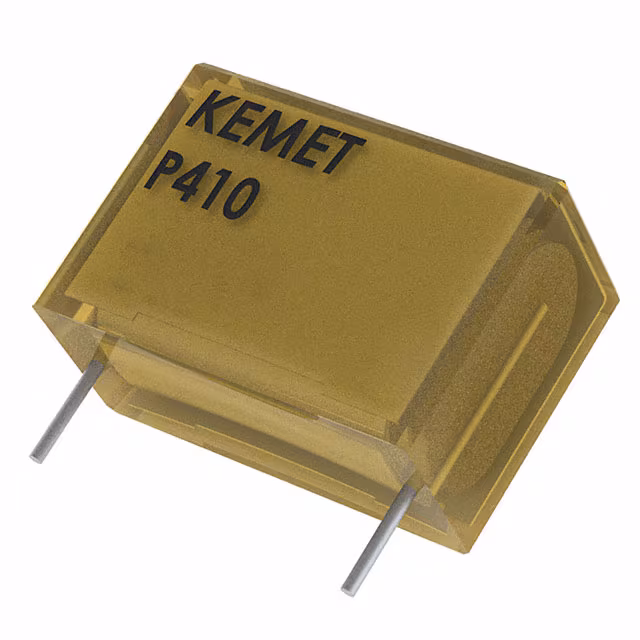

P410CJ473M300AH101
KEMETUnited States

P410CJ473M300AH101

ActiveEMI/RFI Filters (LC, RC Networks)

FILTER RC 100 OHM/47UF TH

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Number of Channels1
Resistance - Channel (Ohms)100
Voltage - Rated300VAC
AC and DC characteristics
Center / Cutoff Frequency-
Environment and package
Height0.591" (15.00mm)
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageBulk
Package / CaseRadial
Size / Dimension0.945" L x 0.354" W (24.00mm x 9.00mm)
Other
ApplicationsGeneral Purpose
Attenuation Value-
Base Product NumberP410CJ
ESD ProtectionNo
Filter Order1st
MfrKEMET
Product StatusActive
SeriesP410
TechnologyRC
TypeLow Pass
ValuesR = 100Ohms, C = 47nF
