Key specs
Current rating100 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 100mA |
| Voltage Rating | 24VDC |
| Environment and package | |

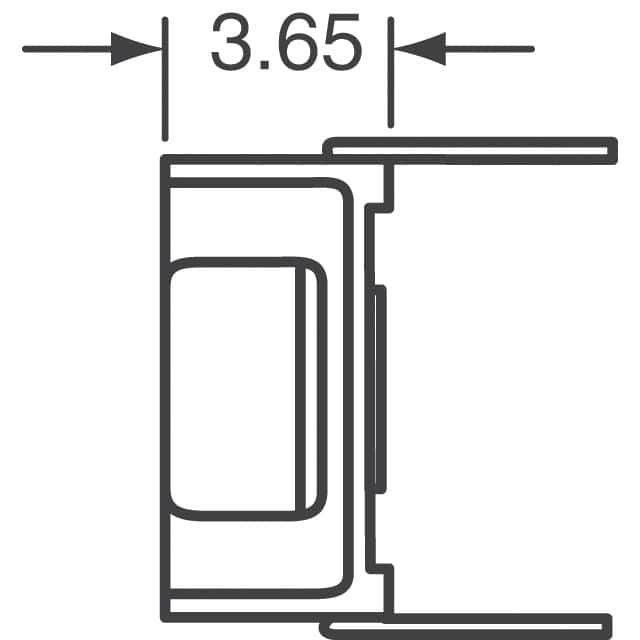

| Height Above Board | 0.143" (3.63mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~125°C |
| Package | Tube |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Thermoplastic |
| Circuit | BCD |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Electrical Life | - |
| Features | Sealed - Flux Protection |
| Length | 0.291" (7.40mm) |
| Mechanical Life | 10,000 Cycles |
| Mfr | APEM Inc. |
| Number of Positions | 10 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Series | P36 |
| Termination Style | PC Pin |
| Washable | Yes |
