Panduit CorpUnited States

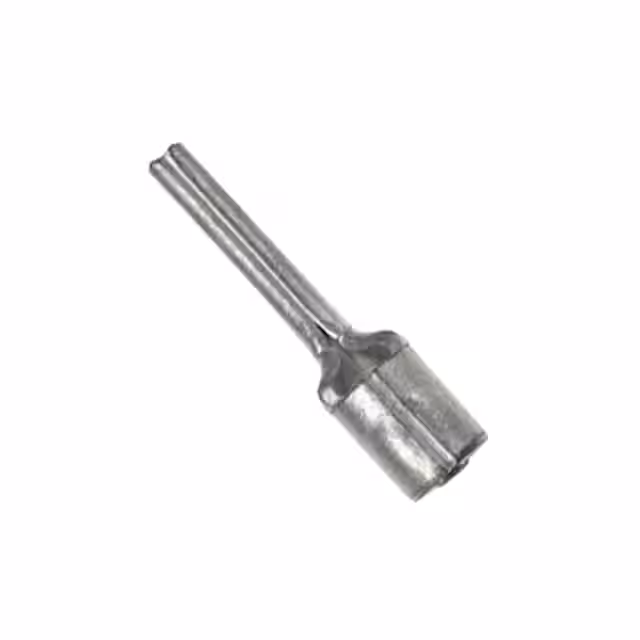

CONN WIRE PIN TERM 18-22AWG
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Other | |
| Base Product Number | P18 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | 0.140" (3.56mm) |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Insulation Diameter | - |
| Length - Overall | 0.750" (19.05mm) |
| Length - Pin | 0.490" (12.45mm) |
| Length - Termination | 0.260" (6.60mm) |
| Material - Insulation | - |
| Mfr | Panduit Corp |
| Pin Diameter | Circular - 0.070" (1.78mm) Dia |
| Product Status | Obsolete |
| Series | Pan-Term® |
| Termination | Crimp |
| Wire Gauge | 18-22 AWG (1.5~0.5mm²) |
