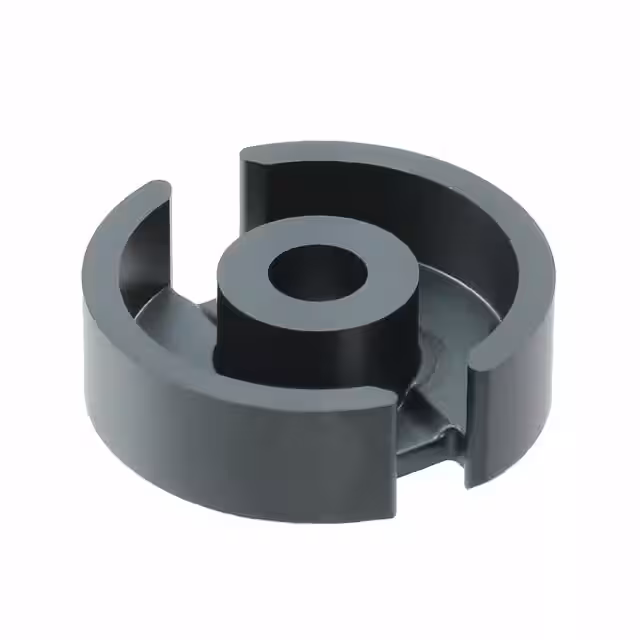

P18/11-3C81

CORES 2PC SET

All alternatives

Environment and package
Height	0.417" (10.60mm)
Package	Bulk
Supplier Device Package	P 18 x 11
Other
Core Factor (ΣI/A) mm<sup>-1</sup>	0.597
Core Type	P (Pot Core)
Diameter	0.724" (18.40mm)
Effective Area (Ae) mm²	43.3
Effective Length (le) mm	25.8
Effective Magnetic Volume (Ve) mm³	1120
Effective Permeability (µe)	1900
Finish	Uncoated
Gap	Ungapped
Inductance Factor (Al)	4 µH
Length	-
Mfr	Ferroxcube
Minimum Core Cross Section (Amin) mm²	36
Product Status	Obsolete
Series	-
Tolerance	±25%
Width	-
