Texas InstrumentsUnited States

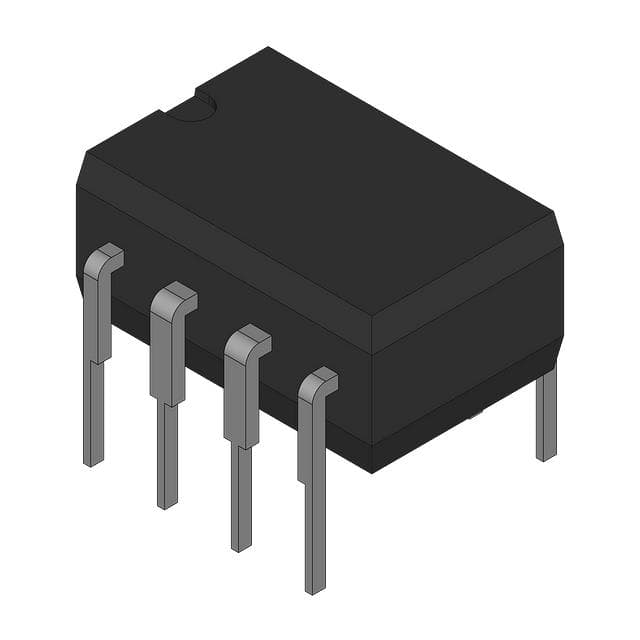

IC OPAMP VFB 300MHZ SGL 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage5 ~ 12 V
Gain bandwidth product300 MHzTyp
Input offset voltage1 mVTyp
Quiescent current6.4 mATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 8 µA |
| Current - Output / Channel | 190 mA |
| Current - Supply | 6.4mA |
| Voltage - Supply Span (Max) | 12 V |
| Voltage - Supply Span (Min) | 5 V |
| AC and DC characteristics | |
| -3db Bandwidth | 400 MHz |
| Gain Bandwidth Product | 300 MHz |
| Slew Rate | 1800V/µs |
| Voltage - Input Offset | 1 mV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Amplifier Type | Voltage Feedback |
| Base Product Number | OPA680 |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Type | - |
| Product Status | Obsolete |
| Series | SpeedPlus™ |
