Texas InstrumentsUnited States
IC CMOS 2 CIRCUIT 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.5 ~ 5.5 V
Gain bandwidth product5.5 MHzTyp
Input offset voltage150 µVTyp
Quiescent current750 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 0.2 pA |
| Current - Output / Channel | 50 mA |
| Current - Supply | 750µA (x2 Channels) |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.5 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 5.5 MHz |
| Slew Rate | 6V/µs |
| Voltage - Input Offset | 150 µV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |

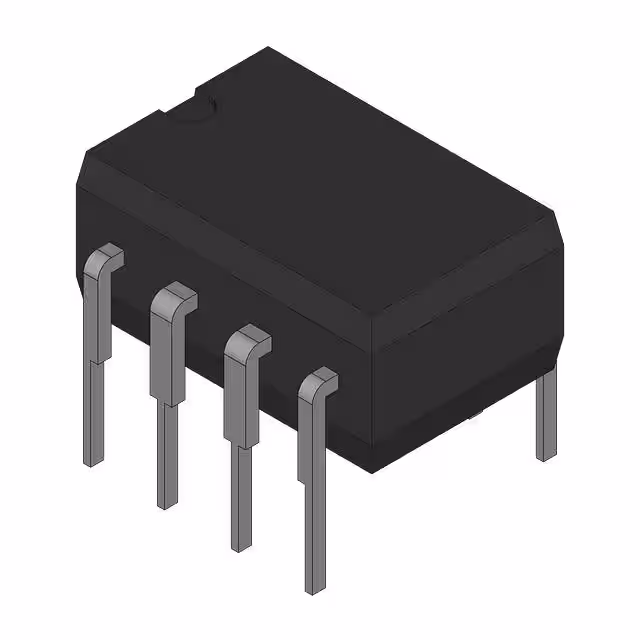

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Amplifier Type | CMOS |
| Base Product Number | OPA2340 |
| Mfr | Texas Instruments |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Product Status | Obsolete |
| Series | microPOWER™ |
