Texas InstrumentsUnited States
IC OPAMP GP 1MHZ SGL LN 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.5 ~ 36 V
Gain bandwidth product1 MHzTyp
Input offset voltage200 µVTyp
Quiescent current530 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 5 pA |
| Current - Output / Channel | 18 mA |
| Current - Supply | 530µA |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 4.5 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 1 MHz |
| Slew Rate | 2V/µs |
| Voltage - Input Offset | 200 µV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |

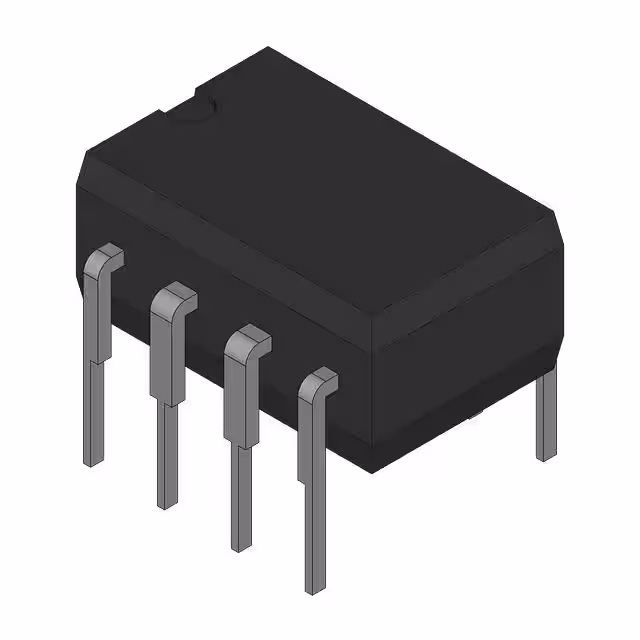

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | OPA130 |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Type | - |
| Product Status | Obsolete |
| Series | - |
