TT Electronics/Optek TechnologyUnited Kingdom

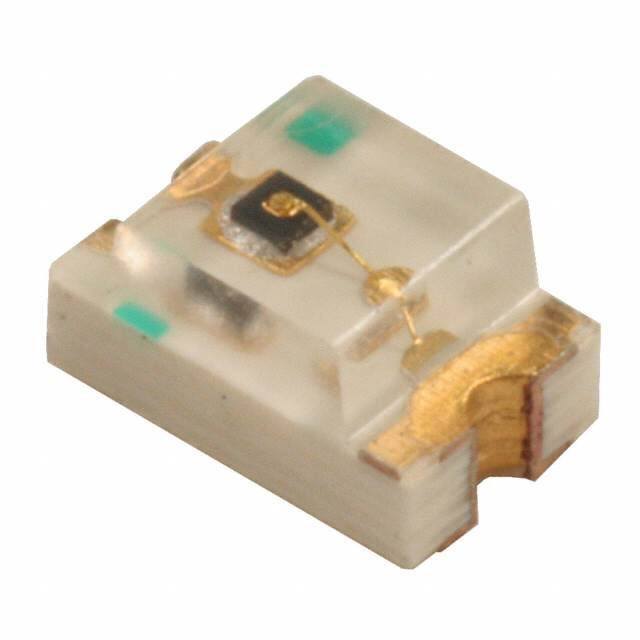

EMITTER IR 880NM 50MA 0805
All alternatives
View full reportTechnical parameters
Key specs
ColorInfrared
Wavelength880 nm
Forward voltage1.5 VTyp
Test current50 mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0805 (2012 Metric) |
| Other | |
| Mfr | TT Electronics/Optek Technology |
| Orientation | Top View |
| Product Status | Obsolete |
| Radiant Intensity (Ie) Min @ If | 0.2mW/cm² @ 20mA |
| Series | - |
| Type | Infrared (IR) |
| Viewing Angle | 150° |
| Wavelength | 880nm |
Documents
No documents are linked to this part yet.
