Analog Devices Inc.United States

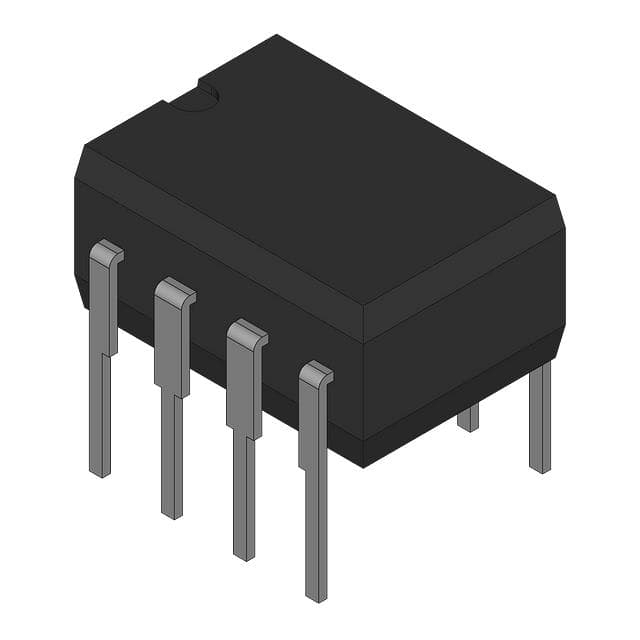

IC INST AMP 1 CIRCUIT 8CERDIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage6 ~ 36 V
Gain bandwidth product600 kHzTyp
Input offset voltage70 µVTyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 700 pA |
| Current - Supply | - |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 6 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 600 kHz |
| Slew Rate | 0.1V/µs |
| Voltage - Input Offset | 70 µV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Other | |
| Amplifier Type | Instrumentation |
| Mfr | Analog Devices Inc. |
| Number of Circuits | 1 |
| Output Type | - |
| Product Status | Active |
| Series | - |
