Honeywell Sensing and Productivity SolutionsUnited States

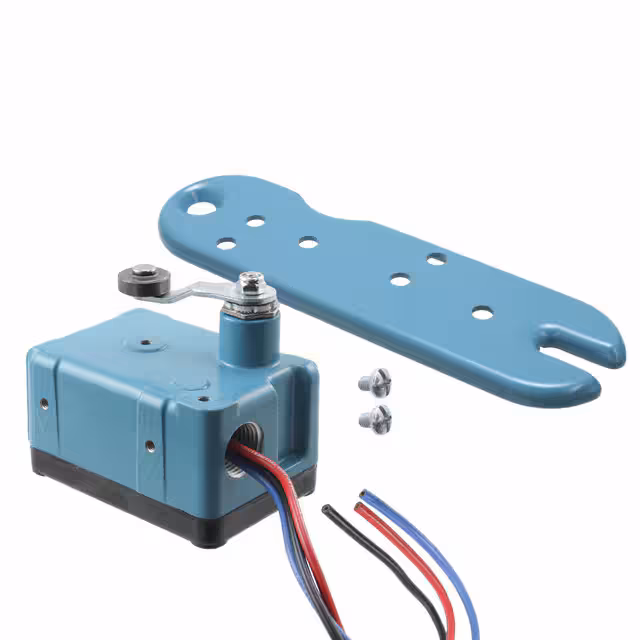

SWITCH SNAP ACTION SPDT 15A 125V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 15A (AC), 500mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Actuator Type | Side Rotary, Roller |
| Circuit | SPDT |
| Differential Travel | - |
| Electrical Life | - |
| Features | Steel Roller, Back Mounted |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | Honeywell Sensing and Productivity Solutions |
| Operating Force | 340gf |
| Operating Position | - |
| Overtravel | 90° |
| Pretravel | 0.219" (5.6mm) |
| Product Status | Obsolete |
| Release Force | - |
| Series | OP |
| Switch Function | On-On |
| Termination Style | Wire Leads |
Documents
No documents are linked to this part yet.
