Pulse drive is used in a control motor, for example, so reflected waves resulting from impedance mismatching between the cable, motor, and control section are superimposed on the signal, resulting in cools which become high voltage noise cools.
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Noise current collection efficiency (reference value) (*3) | 0.5 |
| Power line-to-ground (shield) impedance (Ω) | 110 |
| Environment and package | |
| Conductor size(mm2) | Insulation Outer diameter(mm) |
| Other | |

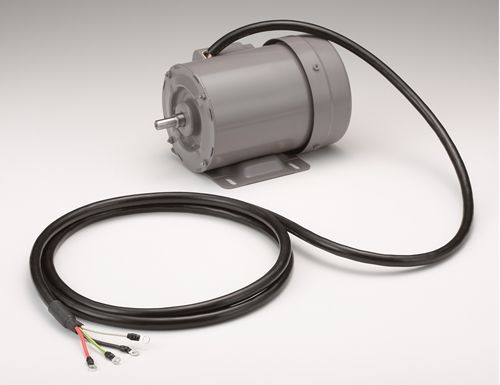

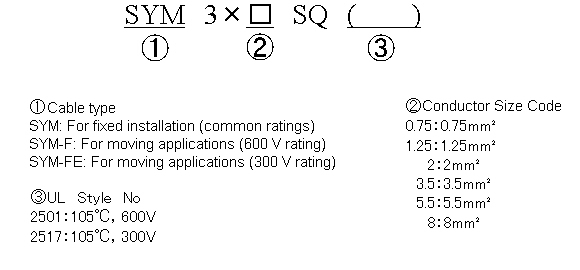

| Cable type | Product code |
| Fixed part | SYM 3×0.75SQ(2501) |
| Item | Conventional product (1) VCT (unshielded)(*1) |
| Moving part | SYM-F 3×0.75SQ(2501) |
| Official series page | https://www.okidensen.co.jp/en/prod/cool/sym.html |
| Sliding bending | 10 million times or more (Bend radius : Approximately 10 times the cable’s outer diameter) |
| Swinging | 10 million times or more (Bend radius : Approximately 3 times the cable’s outer diameter) |
| SYM 3×1.25SQ(2501) | 1.25 |
| SYM 3×2SQ(2501) | 2 |
| SYM 3×3.5SQ(2501) | 3.5 |
| SYM 3×5.5SQ(2501) | 5.5 |
| SYM 3×8SQ(2501) | 8 |
| SYM-F 3×1.25SQ(2501) | 1.25 |
| SYM-F 3×2SQ(2501) | 2 |
| SYM-F 3×3.5SQ(2501) | 3.5 |
| SYM-F 3×5.5SQ(2501) | 5.5 |
| SYM-F 3×8SQ(2501) | 8 |
