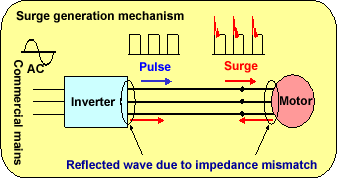

Pulse drive is used in a control motor, for example, so reflected waves resulting from impedance mismatching between the cable, motor, and control section are superimposed on the signal, resulting in surges which become high voltage noise surges.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Micro-surge voltage | 1000V or less (between phases) |
| AC and DC characteristics | |
| Carrier frequency | 15kHz or less |
| Output frequency | 0.1 to 400Hz |
| Environment and package | |
| Ambient temperature | -20 to +40degrees |
| Other | |
| Applicable inverter | Power source voltage |

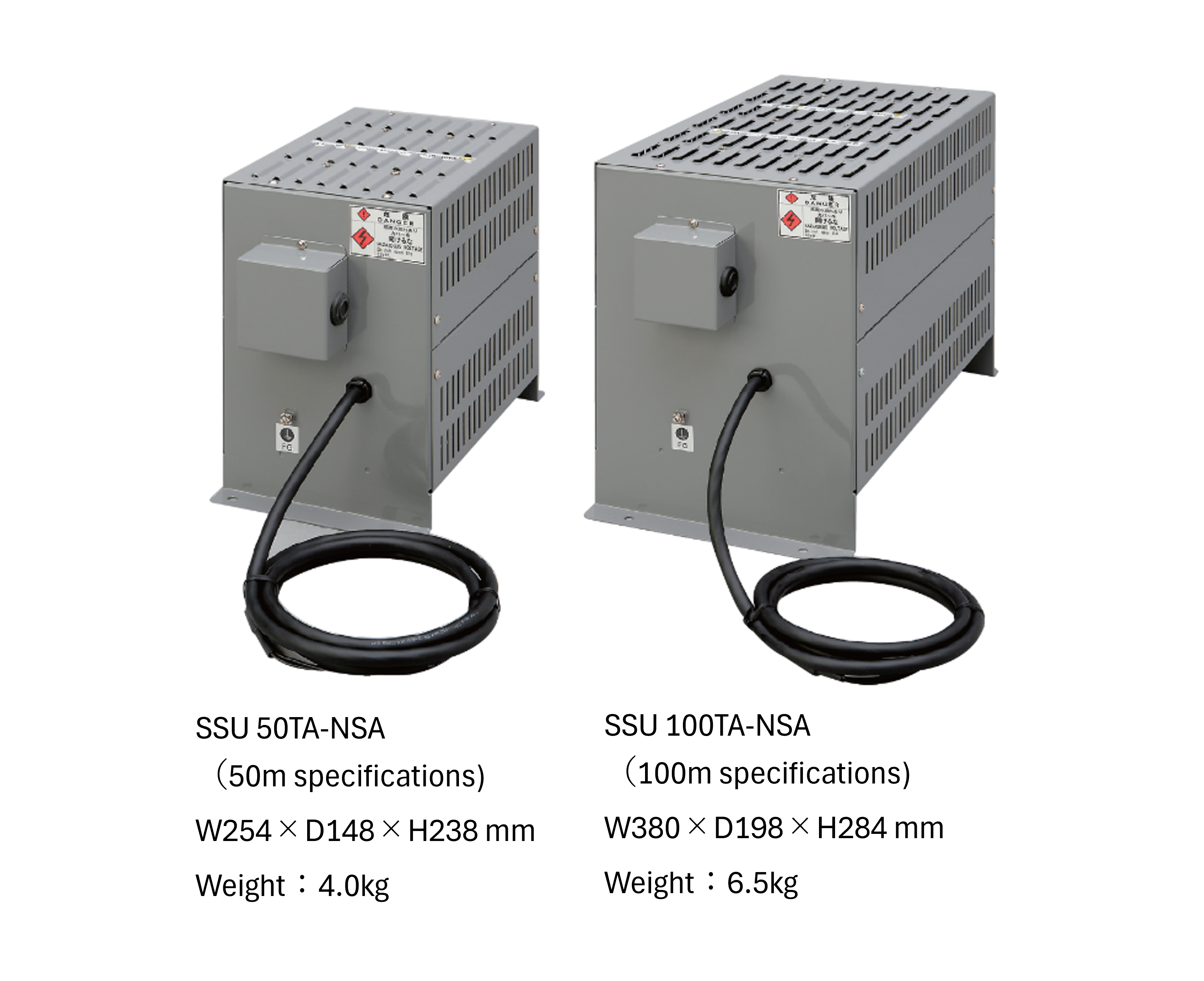

| Applicable motor wiring length | SSU50: 50m or less |
| Inverter capacity | 75kW or less We manufacture units individually for motors exceeding 75kV. |
| Item | Specifications |
| Official series page | https://www.okidensen.co.jp/en/prod/cool/ecou.html |
| Protective construction | IP20 |
| Vibration | 0.7G or less |
| Working location | Indoors |
