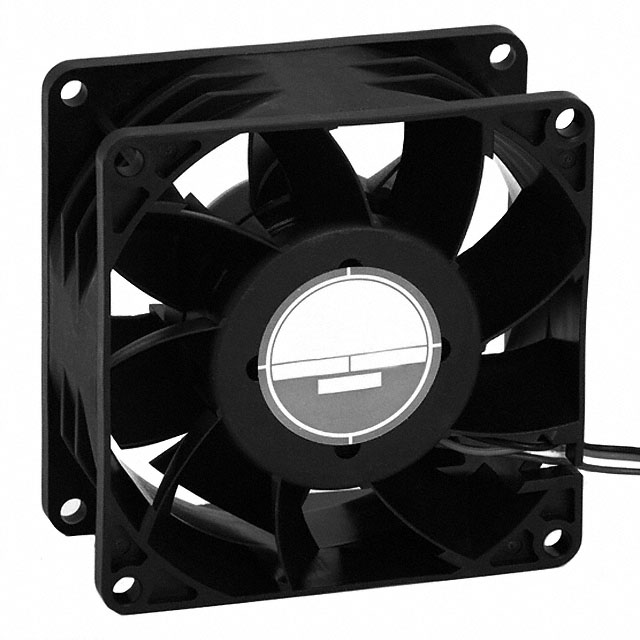

OD8038-12MB-VXC
Orion FansUnited States

OD8038-12MB-VXC

DC Brushless Fans (BLDC)

FAN AXIAL 80X38MM 12VDC WIRE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.800A
Power (Watts)10 W
Voltage Range-
Voltage - Rated12VDC
AC and DC characteristics
Noise54.0dB
Environment and package
Lifetime @ Temp.50000 Hrs @ 40°C
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Size / DimensionSquare - 80mm L x 80mm H
Other
Air Flow89.0 CFM (2.49m³/min)
Approval AgencycURus, TUV
Base Product NumberOD8038
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart
Ingress Protection-
Material - BladePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
MfrOrion Fans
PackagingBulk
Part StatusActive
RPM5600 RPM
SeriesOD8038 VA
Static Pressure0.750 in H2O (186.8 Pa)
Termination2 Wire Leads
Weight-
Width38.00mm

Documents

No documents are linked to this part yet.
