Orion FansUnited States

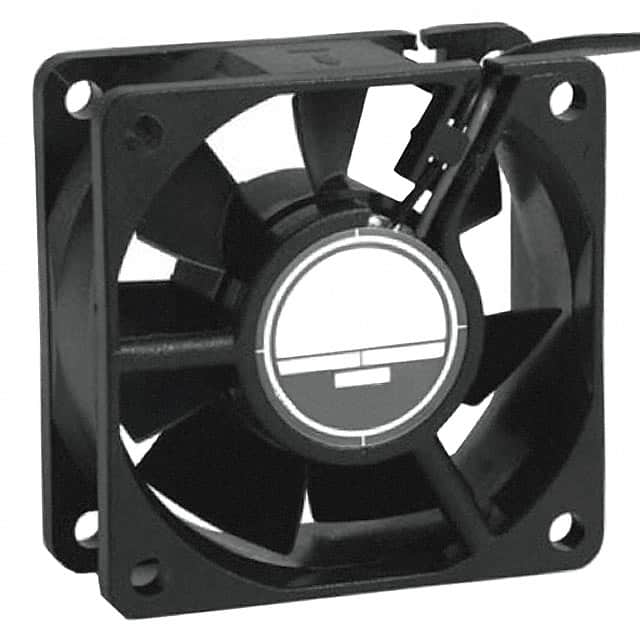

FAN AXIAL 60X25MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.210A |
| Power (Watts) | 1.8 W |
| Voltage Range | - |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 40.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 30000 Hrs @ 45°C |
| Operating Temperature | 14~122°F(-10~50°C) |
| Package | Bulk |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 28.0 CFM (0.784m³/min) |
| Approval Agency | cURus, TUV |
| Base Product Number | OD6025 |
| Bearing Type | Sealed Sleeve |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 4390 RPM |
| Series | OD6025 |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Termination | 4 Wire Leads |
| Weight | 0.141 lb (63.96 g) |
| Width | 25.00mm |
