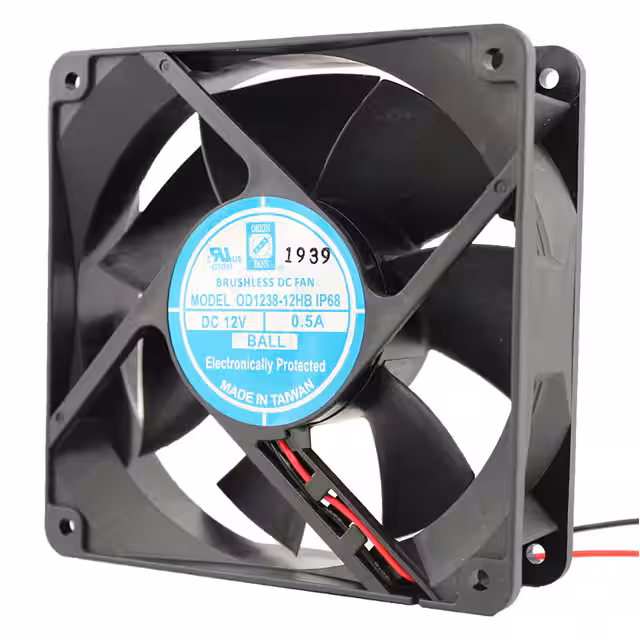

OD1238-48MBIP68
Orion FansUnited States

OD1238-48MBIP68

ActiveDC Brushless Fans (BLDC)

FAN AXIAL 119.5X38MM 48VDC WIRE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.080A
Power (Watts)3.8 W
Voltage Range-
Voltage - Rated48VDC
AC and DC characteristics
Noise41.0dB
Environment and package
Lifetime @ Temp.65000 Hrs @ 45°C
Operating Temperature5~149°F(-15~65°C)
PackageBox
Size / DimensionSquare - 119.5mm L x 119.5mm H
Other
Air Flow115.0 CFM (3.22m³/min)
Approval AgencycURus, TUV
Base Product NumberOD1238
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart
Ingress ProtectionIP68 - Dust Tight, Waterproof
Material - BladePolybutylene Terephthalate (PBT)
Material - FramePolybutylene Terephthalate (PBT)
MfrOrion Fans
Product StatusActive
RPM2600 RPM
SeriesOD1238
Static Pressure0.430 in H2O (107.0 Pa)
Termination2 Wire Leads
Weight0.572 lb (259.45 g)
Width38.00mm
