Orion FansUnited States

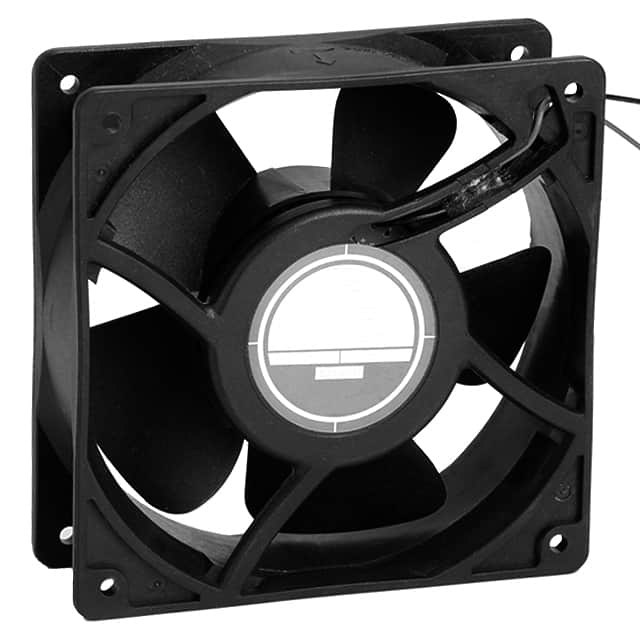

FAN AXIAL 120X38.5MM 48VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.080A |
| Power (Watts) | 3.8 W |
| Voltage Range | 28 ~ 56VDC |
| Voltage - Rated | 48VDC |
| AC and DC characteristics | |
| Noise | 33.0dB |
| Environment and package | |
| Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 120mm L x 120mm H |
| Other | |
| Air Flow | 79.0 CFM (2.21m³/min) |
| Approval Agency | cURus, TUV |
| Base Product Number | OD1238 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 2550 RPM |
| Series | OD1238 |
| Static Pressure | 0.210 in H2O (52.3 Pa) |
| Termination | 2 Wire Leads |
| Weight | - |
| Width | 38.50mm |
