Orion FansUnited States

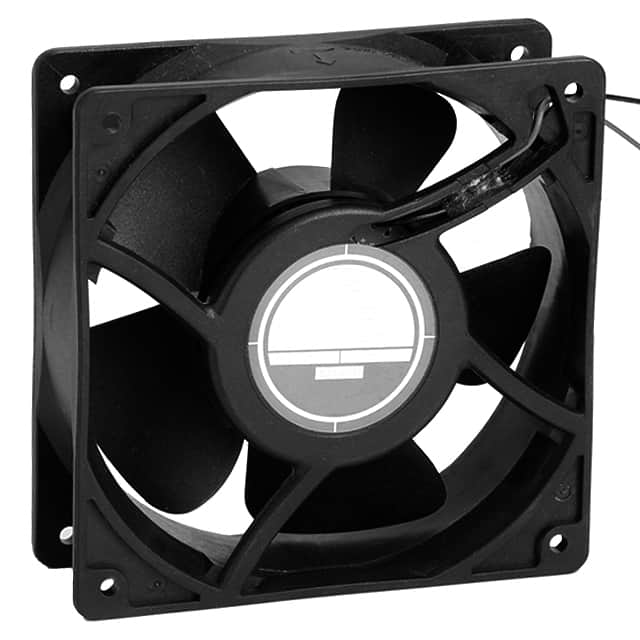

FAN AXIAL 120X38.5MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.230A |
| Power (Watts) | 6 W |
| Voltage Range | - |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 41.0dB |
| Environment and package | |
| Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 120mm L x 120mm H |
| Other | |
| Air Flow | 95.0 CFM (2.66m³/min) |
| Approval Agency | cURus, TUV |
| Base Product Number | OD1238 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 2540 RPM |
| Series | OD1238 |
| Static Pressure | 0.230 in H2O (57.3 Pa) |
| Termination | 3 Wire Leads |
| Weight | - |
| Width | 38.50mm |
