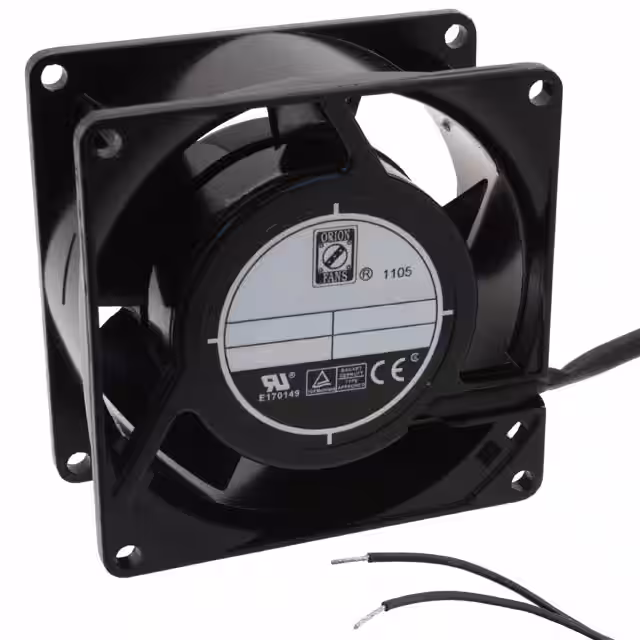

FAN AXIAL 80X38MM 230VAC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.040A |
| Power (Watts) | 12.00W |
| Voltage Range | 160 ~ 260VAC |
| Voltage - Rated | 230VAC |
| AC and DC characteristics | |
| Noise | 28.0dB |
| Environment and package | |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Operating Temperature | -4~176°F(-20~80°C) |
| Package | Box |
| Size / Dimension | Square - 80mm L x 80mm H |
| Other | |
| Air Flow | 17.0 CFM (0.476m³/min) |
| Approval Agency | cURus, TUV |
| Base Product Number | OA80AP |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 1950 RPM |
| Series | OA80 |
| Static Pressure | 0.070 in H2O (17.4 Pa) |
| Termination | 2 Wire Leads |
| Weight | - |
| Width | 38.00mm |
