Orion FansUnited States

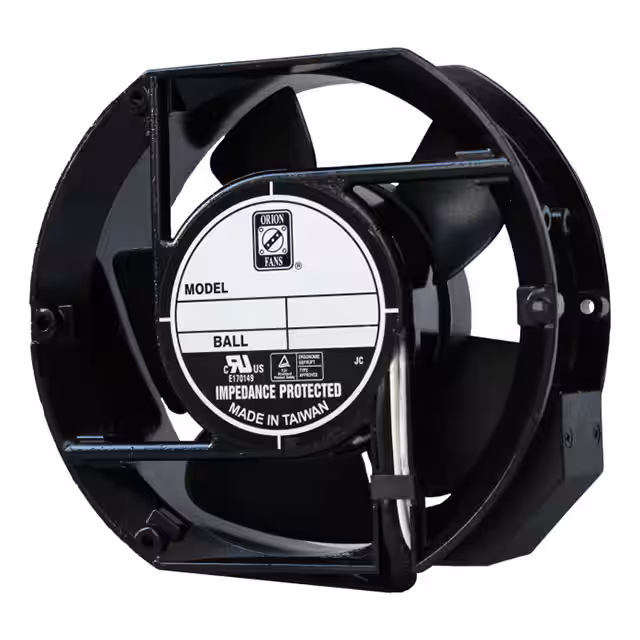

FAN AXIAL 172X50.8MM 115VAC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 20.00W |
| Voltage Range | 80 ~ 130VAC |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 42.0dB |
| Environment and package | |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Operating Temperature | -4~158°F(-20~70°C) |
| Package | Box |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Other | |
| Air Flow | 170.0 CFM (4.76m³/min) |
| Approval Agency | cURus, TUV |
| Base Product Number | OA172SAP |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Capacitor |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 2400 RPM |
| Series | OA172SAP |
| Static Pressure | 0.490 in H2O (122.1 Pa) |
| Termination | 2 Terminals |
| Weight | 2.6 lbs (1.2 kg) |
| Width | 51.00mm |
