Orion FansUnited States

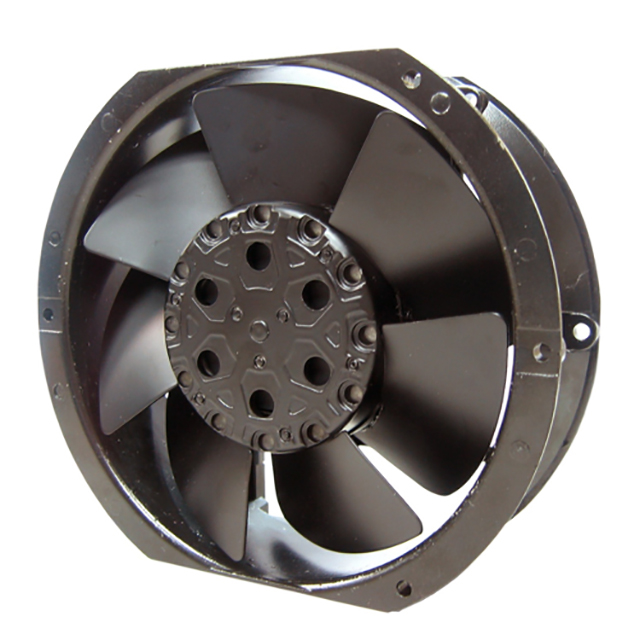

115VAC 172X150X51MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 32.00W |
| Voltage Range | 100 ~ 130VAC |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 48.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Package | Bulk |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Other | |
| Air Flow | 160.0 CFM (4.48m³/min) |
| Approval Agency | CE, cURus, TUV, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 2400 RPM |
| Series | OA172SAP |
| Static Pressure | 0.380 in H2O (94.6 Pa) |
| Termination | 2 Terminals |
| Weight | - |
| Width | 51.00mm |
