Orion FansUnited States

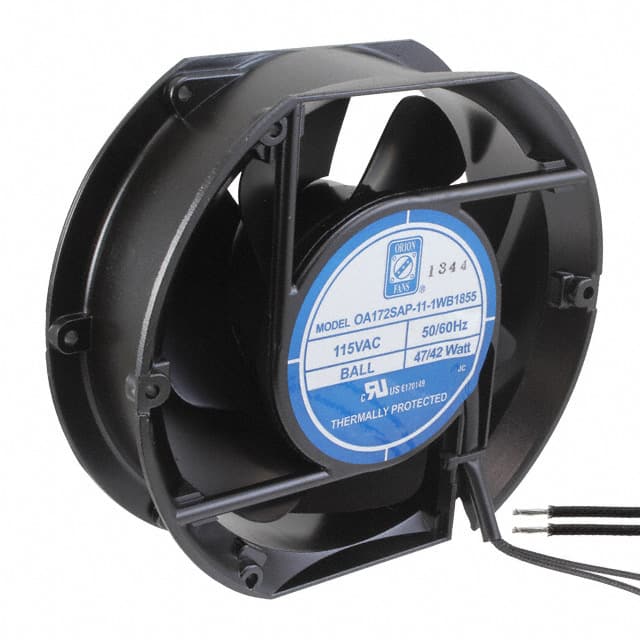

FAN AXIAL 172X51MM 115VAC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 42.00W |
| Voltage Range | 100 ~ 120VAC |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 58.0dB |
| Environment and package | |
| Lifetime @ Temp. | 50000 Hrs @ 55°C |
| Operating Temperature | -22~176°F(-30~80°C) |
| Package | Box |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Other | |
| Air Flow | 210.0 CFM (5.88m³/min) |
| Approval Agency | cURus |
| Base Product Number | OA172SAP |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 3100 RPM |
| Series | OA172SAP |
| Static Pressure | 0.490 in H2O (122.1 Pa) |
| Termination | 2 Wire Leads |
| Weight | 2.7 lbs (1.2 kg) |
| Width | 51.00mm |
