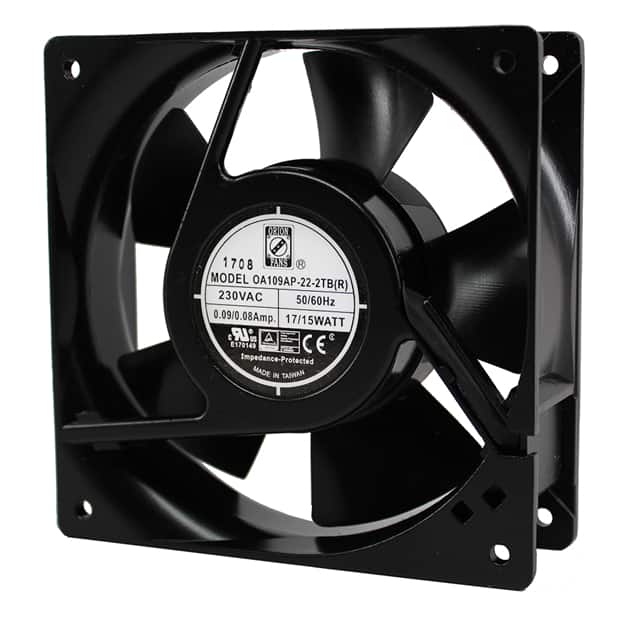

FAN AXIAL 119.5X38.5MM 230VAC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 13.00W |
| Voltage Range | 160 ~ 260VAC |
| Voltage - Rated | 230VAC |
| AC and DC characteristics | |
| Noise | 45.0dB |
| Environment and package | |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Operating Temperature | -4~176°F(-20~80°C) |
| Package | Bulk |
| Size / Dimension | Square - 119.5mm L x 119.5mm H |
| Other | |
| Air Flow | 85.0 CFM (2.38m³/min) |
| Approval Agency | cURus, TUV |
| Base Product Number | OA109AP |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Reverse Air Flow |
| Ingress Protection | - |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Mfr | Orion Fans |
| Product Status | Active |
| RPM | 2750 RPM |
| Series | OA109 |
| Static Pressure | 0.250 in H2O (62.3 Pa) |
| Termination | 2 Terminals |
| Weight | 1.2 lbs (544.3 g) |
| Width | 38.50mm |
