Navitas Semiconductor, Inc.United States

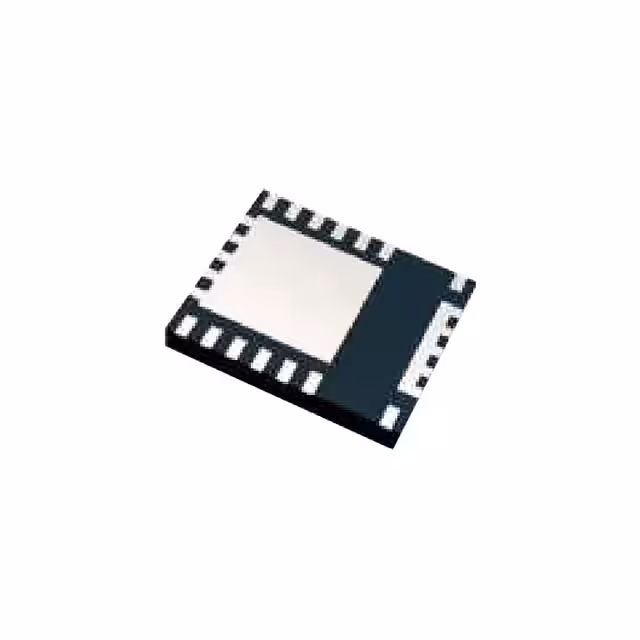

GANFAST WITH GANSENSE, SINGLE, 6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 5A |
| Voltage - Load | 700V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 24V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 27-PowerVQFN |
| Supplier Device Package | 24-QFN (5x6) |
| Other | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO |
| Features | PWM Input, Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | PWM |
| Mfr | Navitas Semiconductor, Inc. |
| Number of Outputs | 1 |
| Output Configuration | High/Low Side |
| Output Type | N-Channel |
| Product Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 260mOhm |
| Series | GaNFast™ |
| Switch Type | General Purpose |
